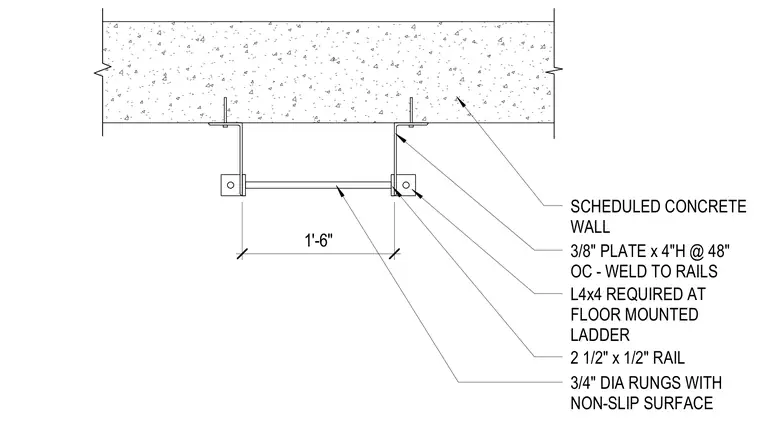

A floor-mounted ladder is secured to a scheduled concrete wall using L4x4 steel angles anchored overhead. The ladder features two 2 1/2-inch by 1/2-inch vertical rails tied together by 3/4-inch diameter rungs featuring a non-slip surface. Three-eighths-inch thick by 4-inch high plates are spaced at 48 inches on center and welded to the rails. The overall width between rail centers measures 1 foot 6 inches.
1'-6" 3/8" PLATE x 4"H @ 48" OC - WELD TO RAILS 2 1/2" x 1/2" RAIL 3/4" DIA RUNGS WITH NON-SLIP SURFACE SCHEDULED CONCRETE WALL L4x4 REQUIRED AT FLOOR MOUNTED LADDER
