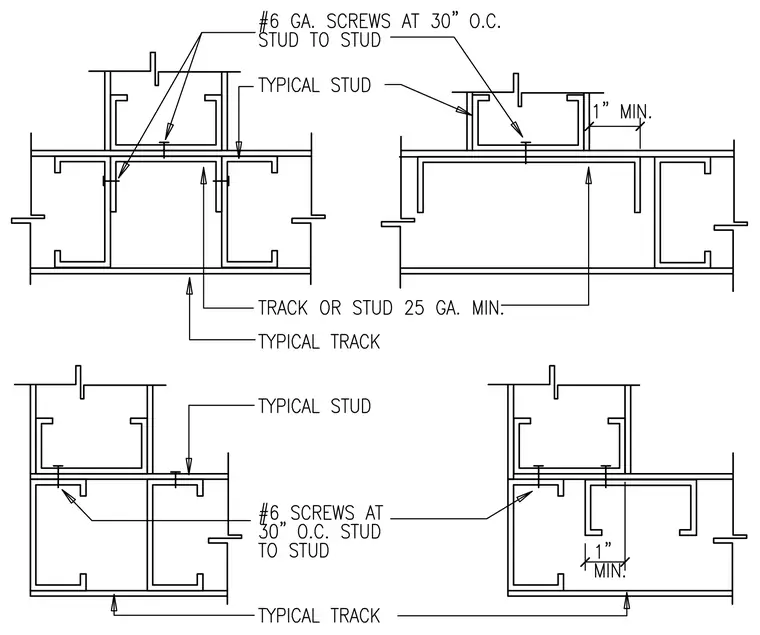

Cold-formed steel stud intersections and tee connections utilize twenty-five gauge minimum tracks and typical studs fastened with number six gauge screws spaced at thirty inches on center. The assembly configurations show standard perpendicular wall junctions and intersecting partition details with one-inch minimum clearances where specified. Framing members are tied together with mechanical fasteners through flanges and webs to maintain structural integrity in light-gauge partitions.
