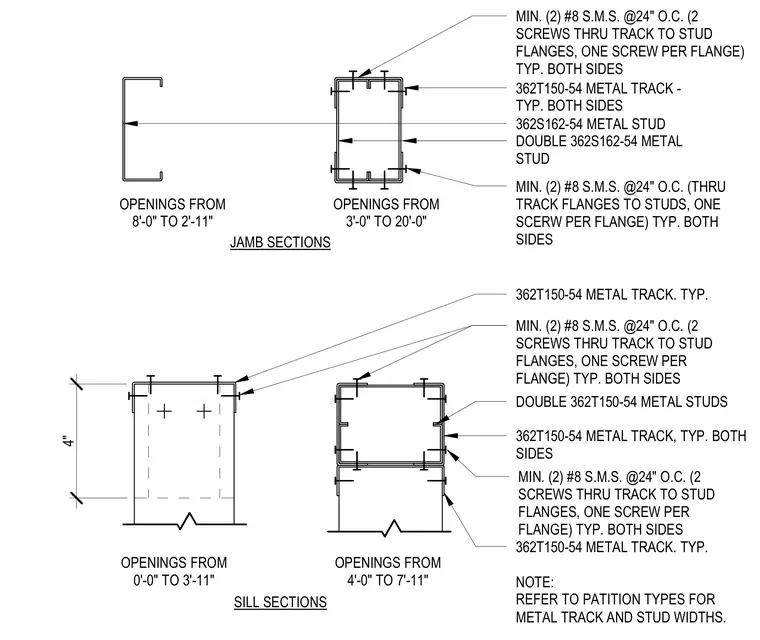

Cold-formed steel jamb and sill sections utilize 362S162-54 metal studs and 362T150-54 metal tracks configured in single and double arrangements based on opening dimensions. Fastener schedules require a minimum of two number eight sheet metal screws at twenty-four inches on center through the track flanges to the stud flanges on both sides. Double stud and double track configurations provide additional structural capacity for larger openings. Partition types govern specific metal track and stud widths.
OPENINGS FROM 8'-0" TO 2'-11" OPENINGS FROM 3'-0" TO 20'-0" OPENINGS FROM 0'-0" TO 3'-11" OPENINGS FROM 4'-0" TO 7'-11" MIN. (2) #8 S.M.S. @24" O.C. (2 SCREWS THRU TRACK TO STUD FLANGES, ONE SCREW PER FLANGE) TYP. BOTH SIDES 362T150-54 METAL TRACK - TYP. BOTH SIDES 362S162-54 METAL STUD DOUBLE 362S162-54 METAL STUD MIN. (2) #8 S.M.S. @24" O.C. (THRU TRACK FLANGES TO STUDS, ONE SCERW PER FLANGE) TYP. BOTH SIDES 362T150-54 METAL TRACK. TYP. MIN. (2) #8 S.M.S. @24" O.C. (2 SCREWS THRU TRACK TO STUD FLANGES, ONE SCREW PER FLANGE) TYP. BOTH SIDES DOUBLE 362T150-54 METAL STUDS 362T150-54 METAL TRACK, TYP. BOTH SIDES MIN. (2) #8 S.M.S. @24" O.C. (2 SCREWS THRU TRACK TO STUD FLANGES, ONE SCREW PER FLANGE) TYP. BOTH SIDES 362T150-54 METAL TRACK. TYP. NOTE: REFER TO PATITION TYPES FOR METAL TRACK AND STUD WIDTHS. 4" JAMB SECTIONS SILL SECTIONS
