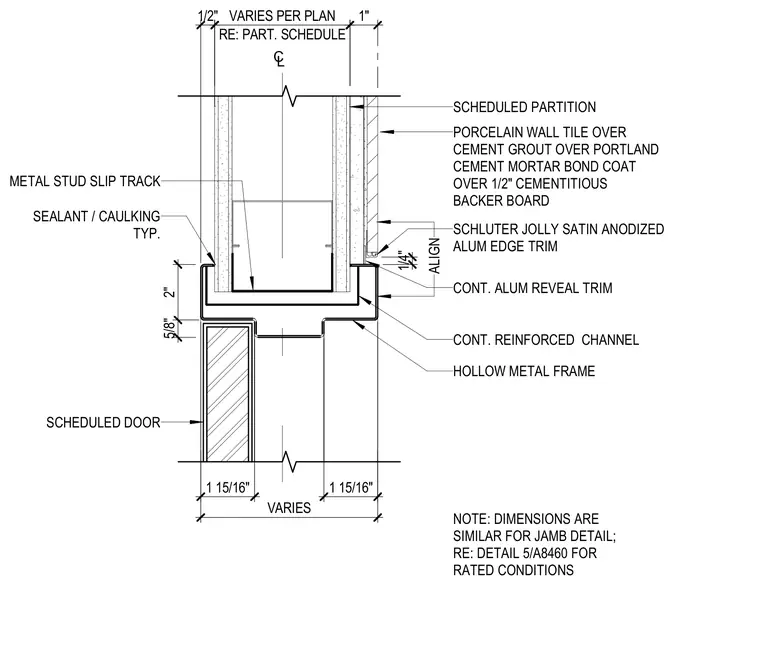

A scheduled hollow metal frame and continuous reinforced channel sit below a scheduled metal stud partition. The partition assembly receives half-inch cementitious backer board, a portland cement mortar bond coat, cement grout, and a two-inch porcelain wall tile finish. A continuous aluminum reveal trim aligns with the tile, flanked by a Schluter Jolly satin anodized aluminum edge trim. A continuous sealant caulking joint seals the transition between the door frame and the wall finish.
CONT. REINFORCED CHANNEL HOLLOW METAL FRAME NOTE: DIMENSIONS ARE SIMILAR FOR JAMB DETAIL; RE: DETAIL 5/A8460 FOR RATED CONDITIONS CL 1 15/16" VARIES SCHEDULED PARTITION METAL STUD SLIP TRACK 5/8" 2" PORCELAIN WALL TILE OVER CEMENT GROUT OVER PORTLAND CEMENT MORTAR BOND COAT OVER 1/2" CEMENTITIOUS BACKER BOARD SEALANT / CAULKING TYP. SCHEDULED DOOR 1 15/16" ALIGN 1/4" 1/2" CONT. ALUM REVEAL TRIM SCHLUTER JOLLY SATIN ANODIZED ALUM EDGE TRIM 1" RE: PART. SCHEDULE VARIES PER PLAN
