Cold-formed metal stud headers or boxed headers frame hollow metal window and door head and jamb assemblies, utilizing double studs at the jamb condition. The framing is wrapped with four layers of five-eighths inch gypsum board on each side, enclosing a four-inch batt insulation cavity where specified. A hollow metal frame is secured with two number six by three-eighths inch sheet metal screws per jamb anchor, with a minimum of three anchors per jamb. The assembly accommodates either one-quarter inch tempered glazing or a door as per schedule.

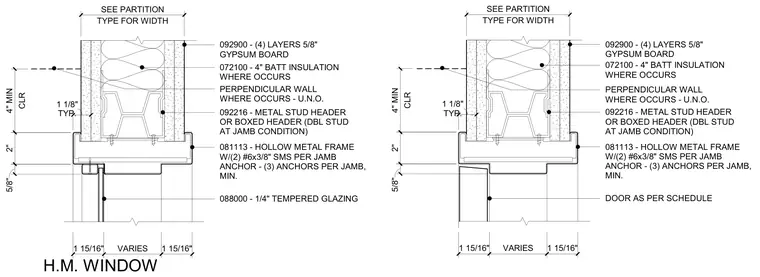

2" 092216 - METAL STUD HEADER OR BOXED HEADER (DBL STUD AT JAMB CONDITION) 081113 - HOLLOW METAL FRAME W/(2) #6x3/8" SMS PER JAMB ANCHOR - (3) ANCHORS PER JAMB, MIN. 092900 - (4) LAYERS 5/8" GYPSUM BOARD CLR 4" MIN PERPENDICULAR WALL WHERE OCCURS - U.N.O. DOOR AS PER SCHEDULE 1 15/16" VARIES 1 15/16" TYP. 1 1/8" 5/8" 072100 - 4" BATT INSULATION WHERE OCCURS TYPE FOR WIDTH SEE PARTITION 2" 092216 - METAL STUD HEADER OR BOXED HEADER (DBL STUD AT JAMB CONDITION) 081113 - HOLLOW METAL FRAME W/(2) #6x3/8" SMS PER JAMB ANCHOR - (3) ANCHORS PER JAMB, MIN. 092900 - (4) LAYERS 5/8" GYPSUM BOARD CLR 4" MIN PERPENDICULAR WALL WHERE OCCURS - U.N.O. 088000 - 1/4" TEMPERED GLAZING 1 15/16" VARIES 1 15/16" TYP. 1 1/8" 5/8" 072100 - 4" BATT INSULATION WHERE OCCURS TYPE FOR WIDTH SEE PARTITION H.M. WINDOW
