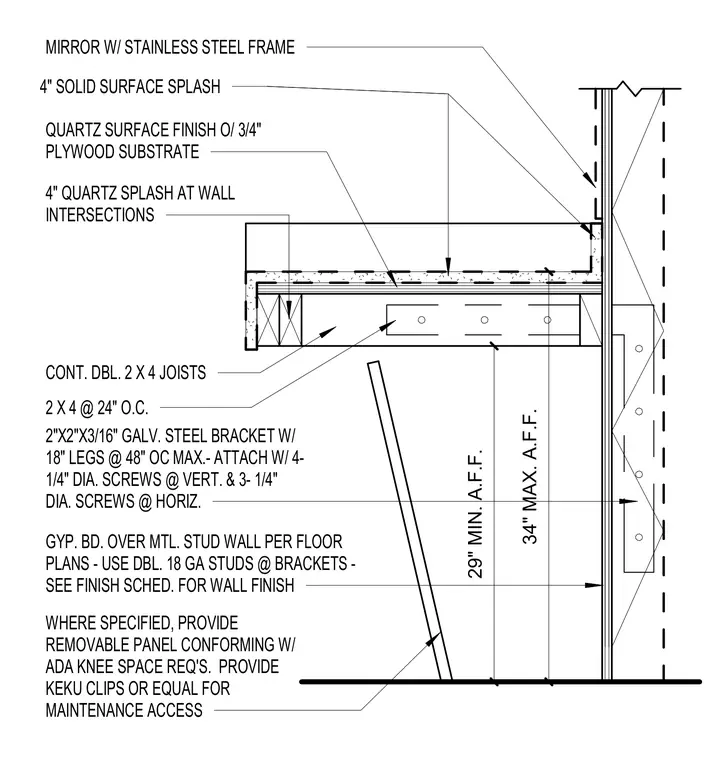

A quartz surface finish is applied over a three-quarter inch plywood substrate, bounded by four-inch quartz splashes at wall intersections and topped by a mirror with a stainless steel frame. The countertop is supported by continuous double two-by-four joists spaced at twenty-four inches on center and secured with two-by-two by three-sixteenth inch galvanized steel brackets featuring eighteen-inch legs at a maximum spacing of forty-eight inches on center. Each bracket is attached using four one-quarter-inch-diameter screws vertically and three one-quarter-inch-diameter screws horizontally. The assembly is anchored to a gypsum board over a metal stud wall, utilizing double eighteen-gauge studs at the bracket locations per the finish schedule. Where specified, a removable panel is provided to conform with Americans with Disabilities Act knee space requirements, utilizing Keku clips or an equivalent fastening system for maintenance access. The mounting height ranges between a twenty-nine-inch minimum and a thirty-four-inch maximum above finished floor.
MIRROR W/ STAINLESS STEEL FRAME 4" SOLID SURFACE SPLASH QUARTZ SURFACE FINISH O/ 3/4" PLYWOOD SUBSTRATE 4" QUARTZ SPLASH AT WALL INTERSECTIONS CONT. DBL. 2 X 4 JOISTS 2 X 4 @ 24" O.C. 2"X2"X3/16" GALV. STEEL BRACKET W/ 18" LEGS @ 48" OC MAX.- ATTACH W/ 4- 1/4" DIA. SCREWS @ VERT. & 3- 1/4" DIA. SCREWS @ HORIZ. GYP. BD. OVER MTL. STUD WALL PER FLOOR PLANS - USE DBL. 18 GA STUDS @ BRACKETS - SEE FINISH SCHED. FOR WALL FINISH WHERE SPECIFIED, PROVIDE REMOVABLE PANEL CONFORMING W/ ADA KNEE SPACE REQ'S. PROVIDE KEKU CLIPS OR EQUAL FOR MAINTENANCE ACCESS 34" MAX. A.F.F. 29" MIN. A.F.F.
