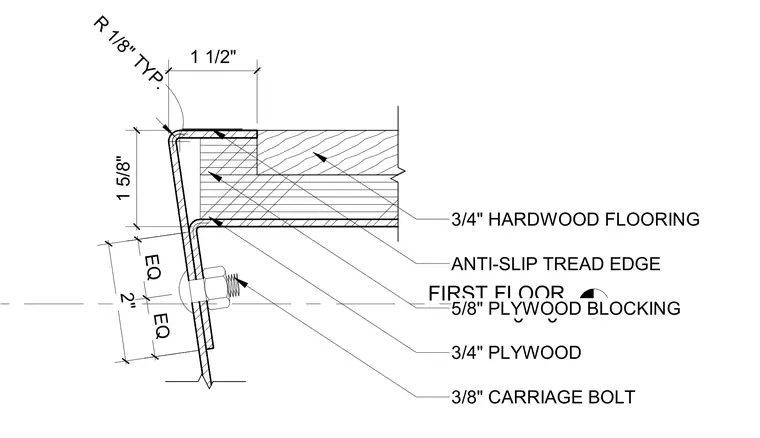

This stair nosing detail features a metal edge plate fastened with three-eighths-inch carriage bolts to a wood stair construction. The assembly incorporates three-quarter-inch hardwood flooring over three-quarter-inch plywood and five-eighths-inch plywood blocking. An anti-slip tread edge protects the outer corner, configured with a typical one-eighth-inch radius bend. Equal spacing is designated for the vertical fastener layout along the face of the nosing plate.
FIRST FLOOR 0' - 0" 2" 1 5/8" R 1/8" TYP. EQ EQ 1 1/2" ANTI-SLIP TREAD EDGE 5/8" PLYWOOD BLOCKING 3/4" PLYWOOD 3/8" CARRIAGE BOLT 3/4" HARDWOOD FLOORING
