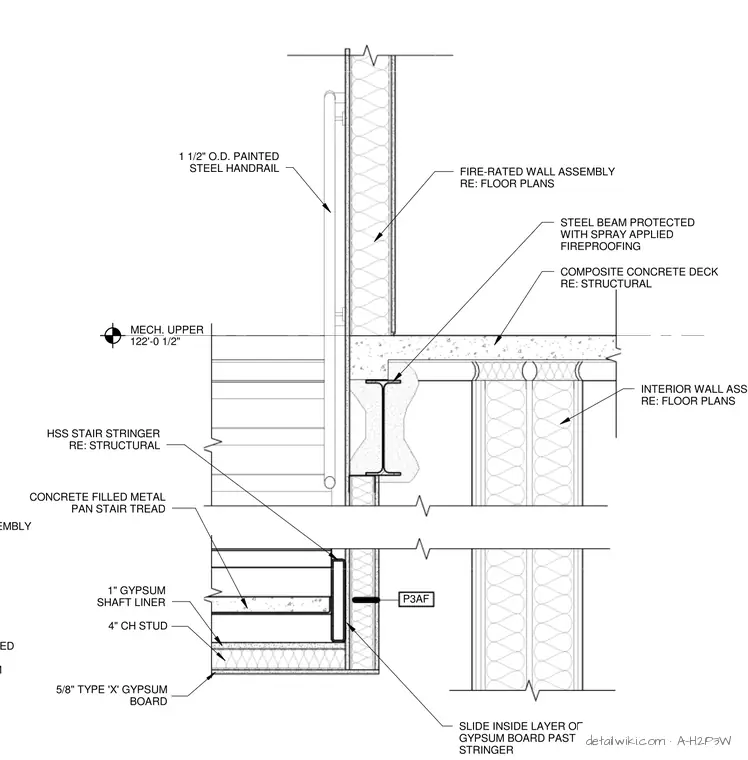

An interface exists between a hollow structural section stair stringer, concrete-filled metal pan stair treads, and a fire-rated shaft wall. A one and one-half inch outside diameter painted steel handrail mounts adjacent to a fire-rated wall assembly. A steel beam protected with spray-applied fireproofing supports the composite concrete deck. Below the deck, the stair construction incorporates an interior wall assembly with a four-inch channel stud, one-inch gypsum shaft liner, and five-eighths-inch Type X gypsum board, with a layer of gypsum board sliding past the stringer.
MECH. UPPER 122'-0 1/2" FIRE-RATED WALL ASSEMBLY RE: FLOOR PLANS INTERIOR WALL ASSEMBLY RE: FLOOR PLANS COMPOSITE CONCRETE DECK RE: STRUCTURAL 1 1/2" O.D. PAINTED STEEL HANDRAIL CONCRETE FILLED METAL PAN STAIR TREAD 4" CH STUD 1" GYPSUM SHAFT LINER 5/8" TYPE 'X' GYPSUM BOARD SLIDE INSIDE LAYER OF GYPSUM BOARD PAST THE STRINGER P3AF STEEL BEAM PROTECTED WITH SPRAY APPLIED FIREPROOFING HSS STAIR STRINGER RE: STRUCTURAL OPERATED, U.L. APPROVED DOOR W/ 250º MAXIMUM FIRE-RATED WALL ASSEMBLY
