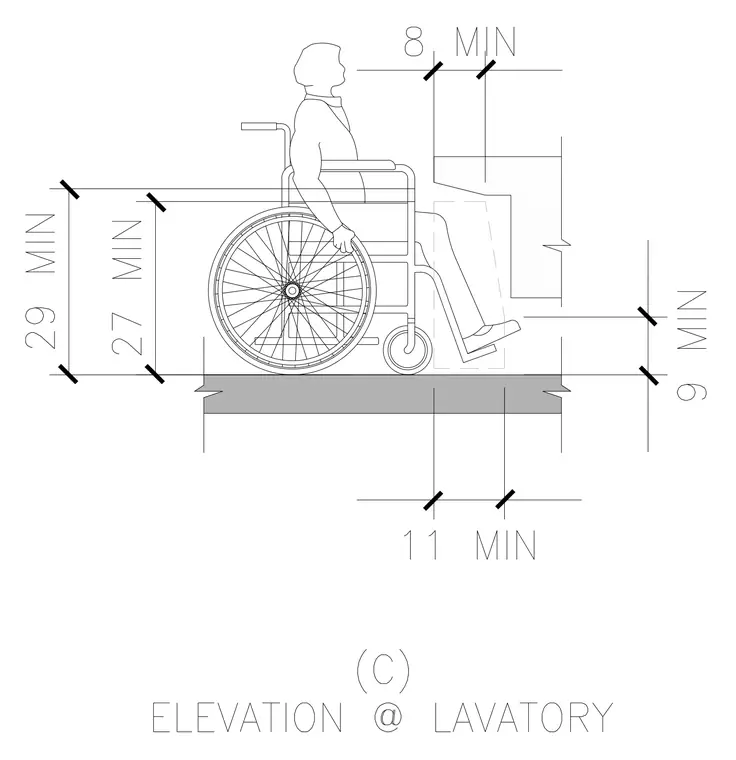

An accessible lavatory elevation showing vertical and horizontal clearance requirements for a wheelchair user. The assembly maintains a minimum vertical clearance of 27 inches to the underside of the lavatory apron, with a 29-inch minimum clearance to the rim or counter top. A minimum knee depth of 8 inches is provided below the counter front, extending to an 11-inch minimum toe clearance at floor level. A minimum toe clearance height of 9 inches is maintained above the finished floor.
