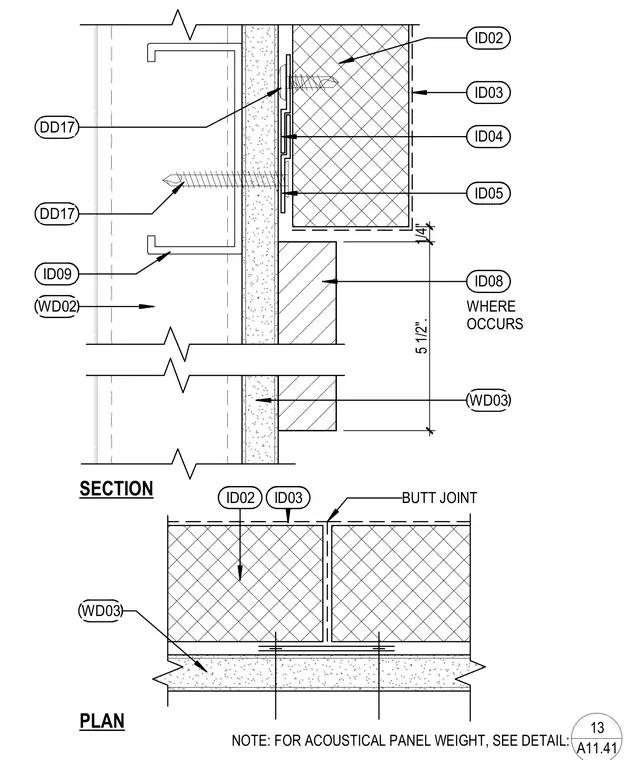

An acoustical panel is secured over a gypsum board substrate and light-gauge metal framing using mechanical fasteners and mounting clips. The panels feature a butt joint configuration between adjacent units in plan view. A five-and-a-half-inch spacing with a quarter-inch joint gap is maintained where specified.
BUTT JOINT DD17 DD17 WD02 5 1/2". 1/4" ID09 ID02 ID03 ID04 ID05 ID08 WHERE OCCURS ID03 ID02 WD03 WD03 SECTION PLAN NOTE: FOR ACOUSTICAL PANEL WEIGHT, SEE DETAIL: 13 A11.41
