The scheduled wall assembly transitions to a glass panel that recesses up into the casing detail. Wood blocking is provided as required to achieve this recessed condition, with the exact distance determined by manufacturer instructions. A three-eighths inch joint is sealed with backer rod and sealant. The door or window casing is installed per the door and window schedule.

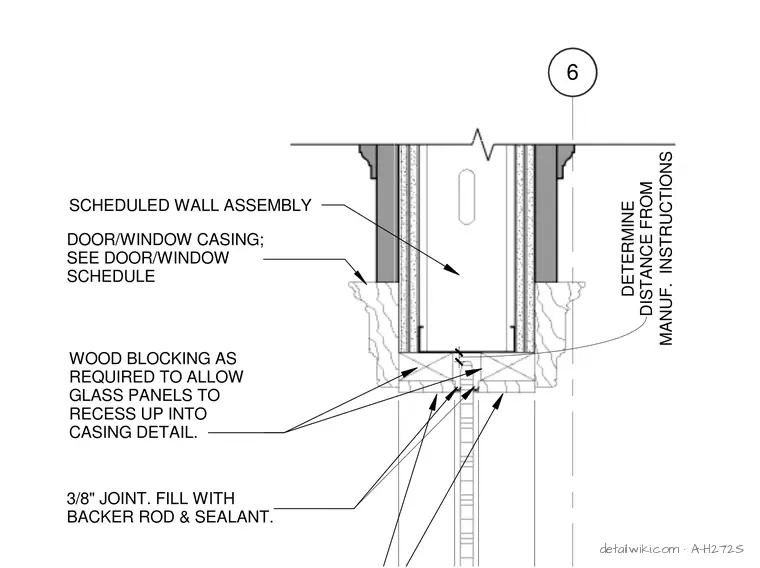

6 DOOR/WINDOW CASING; SEE DOOR/WINDOW SCHEDULE 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. WOOD BLOCKING AS REQUIRED TO ALLOW GLASS PANELS TO RECESS UP INTO CASING DETAIL. SCHEDULED WALL ASSEMBLY MANUF. INSTRUCTIONS DETERMINE DISTANCE FROM
