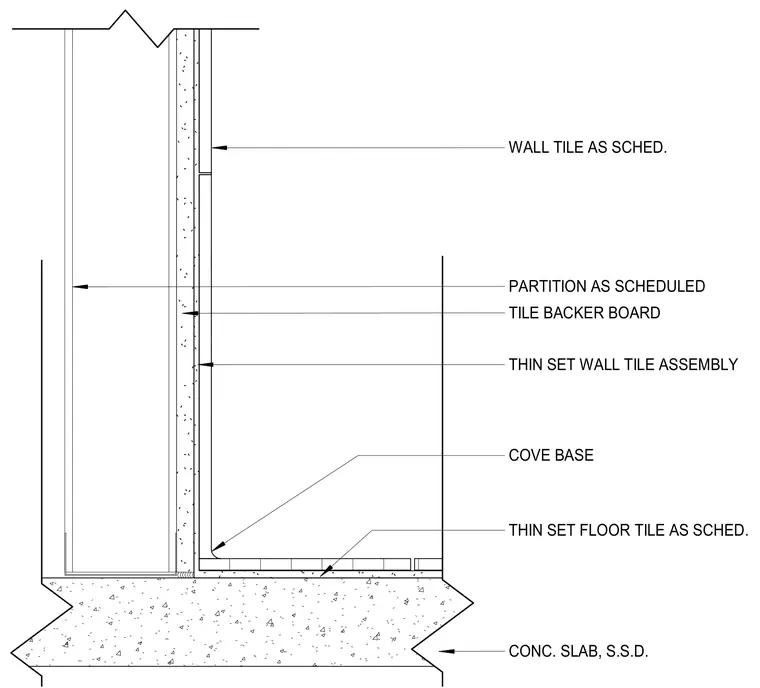

The wall partition as scheduled receives a tile backer board supporting a thin-set wall tile assembly. The concrete slab supports a thin-set floor tile assembly that meets the wall finish at a cove base.
PARTITION AS SCHEDULED WALL TILE AS SCHED. THIN SET WALL TILE ASSEMBLY THIN SET FLOOR TILE AS SCHED. CONC. SLAB, S.S.D. TILE BACKER BOARD COVE BASE
