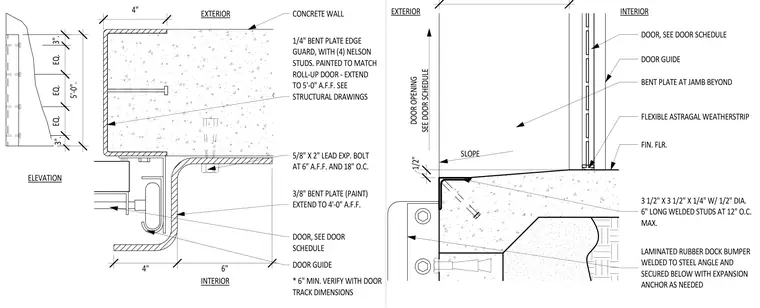

Jamb and threshold construction for a sectional roll-up door at a concrete wall. The exterior edge of the concrete wall is protected by a quarter-inch bent plate edge guard anchored with four Nelson studs and extending five feet above the finished floor. A three-eighths-inch painted bent plate extends four feet above the finished floor to form the interior door guide assembly, secured with five-eighths-inch by two-inch lead expansion bolts spaced eighteen inches on center. The door opening features a sloped concrete sill with a three-and-a-half-inch by three-and-a-half-inch by quarter-inch steel angle embedded with half-inch diameter by six-inch long welded studs at twelve inches on center maximum. A laminated rubber dock bumper is welded to the steel angle and secured below with an expansion anchor as needed. A flexible astragal weatherstrip seals the bottom of the door against the finished floor.
5/8" X 2" LEAD EXP. BOLT AT 6" A.F.F. AND 18" O.C. 3/8" BENT PLATE (PAINT) EXTEND TO 4'-0" A.F.F. DOOR, SEE DOOR SCHEDULE ELEVATION CONCRETE WALL 1/4" BENT PLATE EDGE GUARD, WITH (4) NELSON STUDS. PAINTED TO MATCH ROLL-UP DOOR - EXTEND TO 5'-0" A.F.F. SEE STRUCTURAL DRAWINGS * 6" MIN. VERIFY WITH DOOR TRACK DIMENSIONS DOOR GUIDE EXTERIOR INTERIOR 5'-0". 3". EQ. EQ. EQ. 3". 4" 4" 6" SLOPE DOOR OPENING SEE DOOR SCHEDULE 1/2" DOOR, SEE DOOR SCHEDULE DOOR GUIDE BENT PLATE AT JAMB BEYOND FLEXIBLE ASTRAGAL WEATHERSTRIP FIN. FLR. 3 1/2" X 3 1/2" X 1/4" W/ 1/2" DIA. 6" LONG WELDED STUDS AT 12" O.C. MAX. LAMINATED RUBBER DOCK BUMPER WELDED TO STEEL ANGLE AND SECURED BELOW WITH EXPANSION ANCHOR AS NEEDED INTERIOR EXTERIOR
