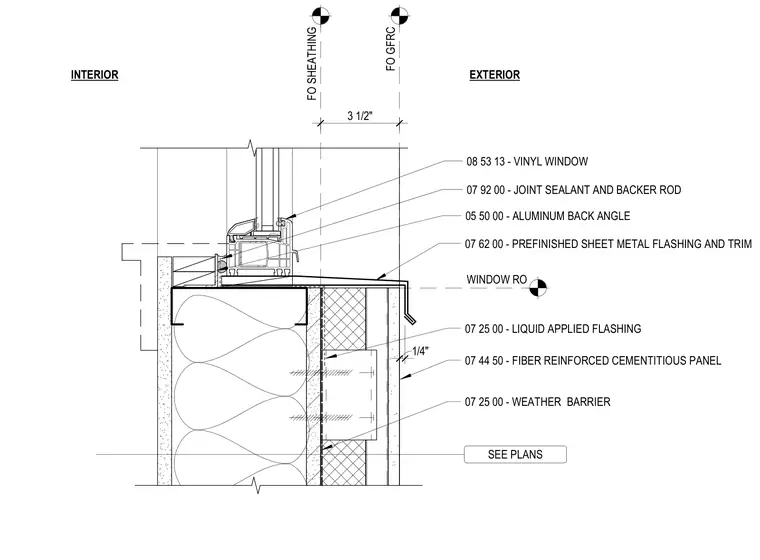

A vinyl window installs over a prefinished sheet metal flashing and trim assembly. Fiber-reinforced cementitious panels mount over a weather barrier and liquid applied flashing on the exterior wall. An aluminum back angle supports the window unit, while joint sealant and backer rod provide weatherproofing at the interior and exterior junctions.
FO GFRC FO SHEATHING 3 1/2" WINDOW RO SEE PLANS 07 44 50 - FIBER REINFORCED CEMENTITIOUS PANEL 07 25 00 - WEATHER BARRIER 07 25 00 - LIQUID APPLIED FLASHING 07 62 00 - PREFINISHED SHEET METAL FLASHING AND TRIM 08 53 13 - VINYL WINDOW 1/4" 07 92 00 - JOINT SEALANT AND BACKER ROD INTERIOR EXTERIOR 05 50 00 - ALUMINUM BACK ANGLE
