Architectural · A-GZEJ5

Reception Desk Countertop and Glass Screen Detail

Materials

Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Walls Floors / Slabs Bracing Millwork / Casework

Connections

Bracing Connection

About this detail

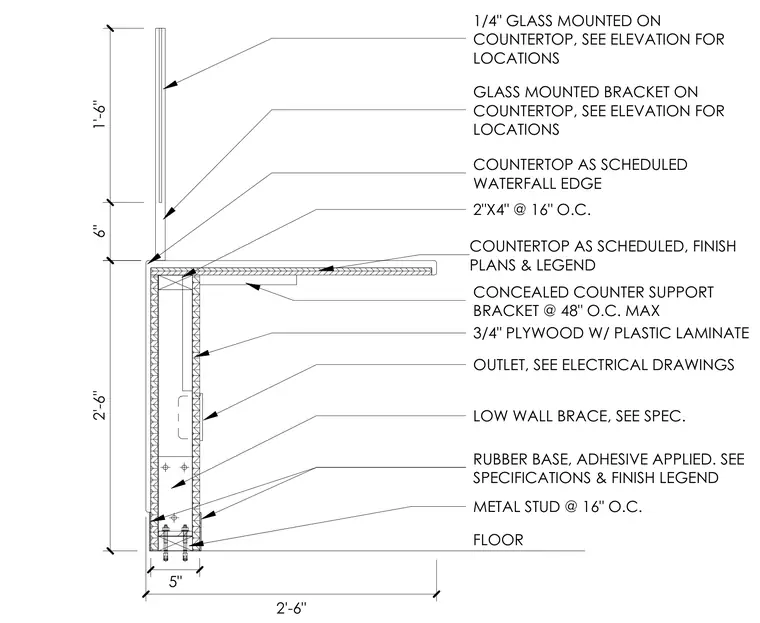

A reception desk half-wall features cold-formed metal studs spaced at sixteen inches on center, anchored to the floor and braced with a low wall brace. The framing is faced with three-quarter-inch plywood finished with plastic laminate and a rubber base adhered at the floor line. A countertop specified in finish plans extends over the knee wall with a waterfall edge, supported underneath by concealed counter support brackets spaced at a maximum of forty-eight inches on center. A one-quarter-inch glass screen is mounted to the top of the countertop using glass-mounted brackets.
