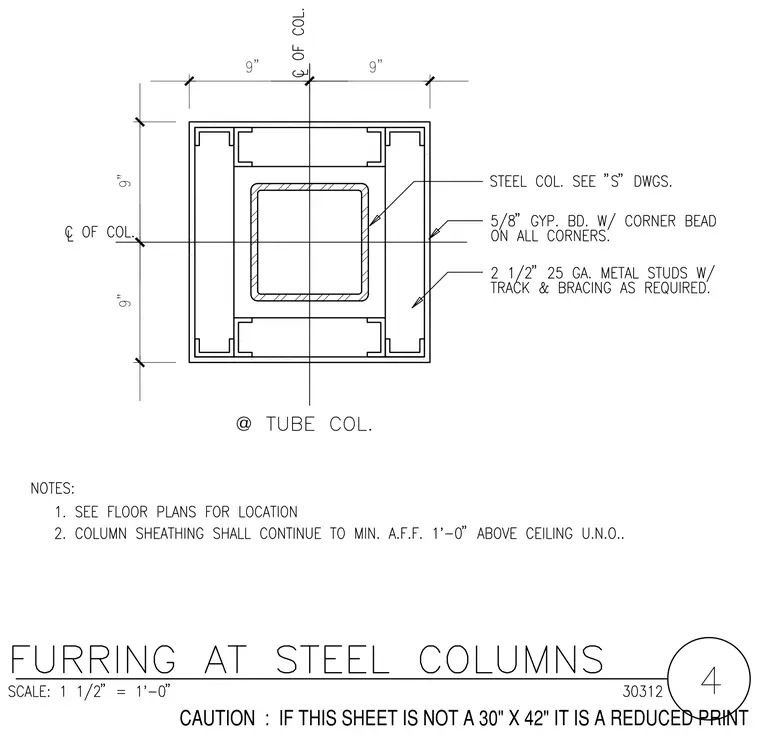

A structural steel column sits at the center surrounded by a furring assembly constructed from two-and-a-half-inch twenty-five gauge metal studs with matching tracks and bracing as required. The perimeter is finished with five-eighths-inch gypsum board featuring corner bead on all exterior corners. Overall dimensions measure nine inches from the column centerline to the outer stud faces in both directions.
