Tack panels are secured to the partition or furring wall using the manufacturer's recommended adhesive. One-eighth-inch aluminum J-channels enclose exposed panel edges typically. Fasteners such as number six sheet metal screws secure each vertical stud as required. The partition meets the floor finish where scheduled, transitioning with a wall base.

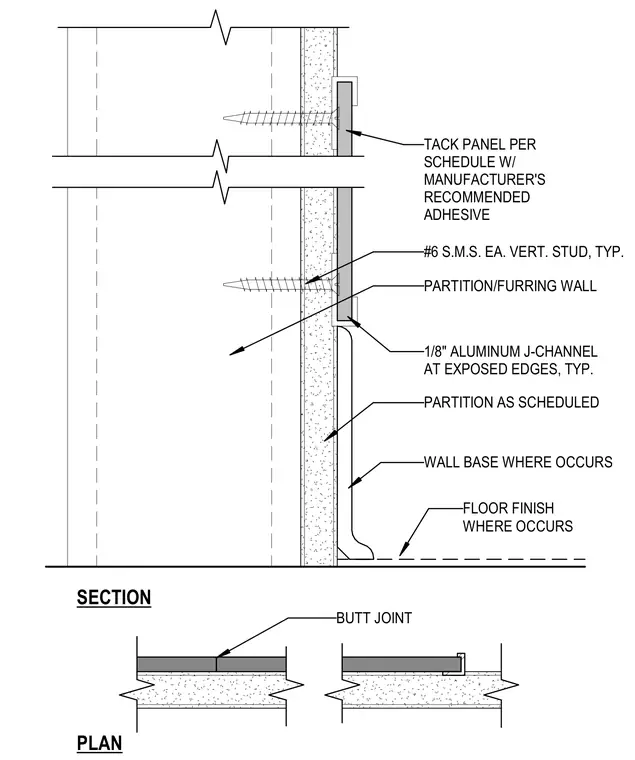

TACK PANEL PER SCHEDULE W/ MANUFACTURER'S RECOMMENDED ADHESIVE 1/8" ALUMINUM J-CHANNEL AT EXPOSED EDGES, TYP. PARTITION AS SCHEDULED BUTT JOINT WALL BASE WHERE OCCURS FLOOR FINISH WHERE OCCURS #6 S.M.S. EA. VERT. STUD, TYP. PARTITION/FURRING WALL SECTION PLAN
