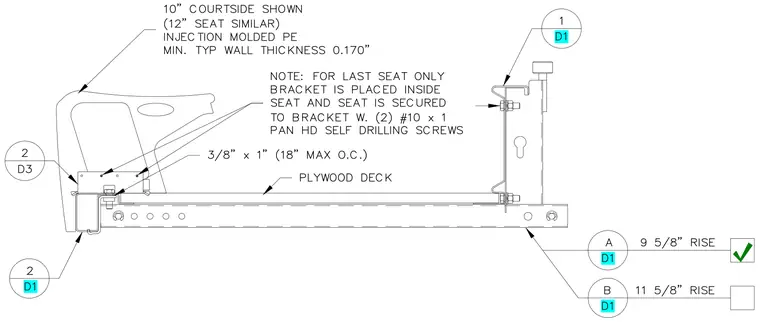

The assembly features a ten-inch courtside injection-molded polyethylene seat with a minimum typical wall thickness of 0.170 inches supported on a plywood deck. The plywood deck is secured with three-eighths by one-inch fasteners spaced at a maximum of eighteen inches on center. For the last seat only, a bracket is placed inside the seat and secured with two number ten by one-inch pan head self-drilling screws. The vertical rise options are indicated as nine and five-eighths inches or eleven and five-eighths inches.
9 5/8" RISE 11 5/8" RISE 1 D1 2 D3 B D1 2 D1 A D1 10" COURTSIDE SHOWN (12" SEAT SIMILAR) INJECTION MOLDED PE MIN. TYP WALL THICKNESS 0.170" PLYWOOD DECK 3/8" x 1" (18" MAX O.C.) NOTE: FOR LAST SEAT ONLY BRACKET IS PLACED INSIDE SEAT AND SEAT IS SECURED TO BRACKET W. (2) #10 x 1 PAN HD SELF DRILLING SCREWS T 0 C B
