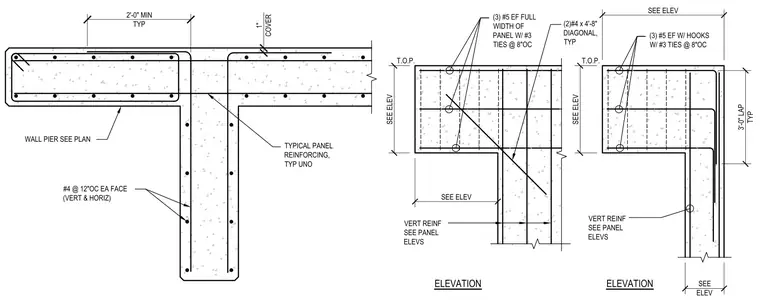

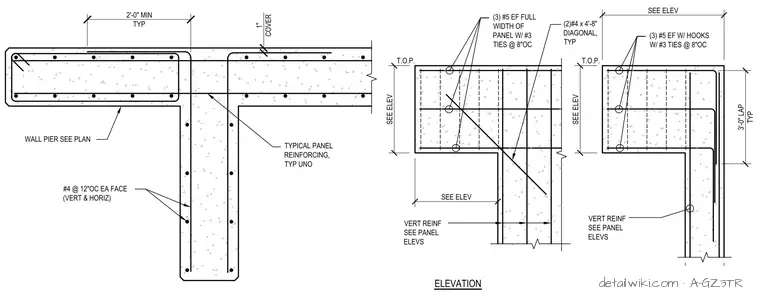

Concrete wall piers utilize number 4 reinforcing bars spaced at 12 inches on center each face, both vertically and horizontally, with a 1-inch concrete cover. Panel corner reinforcement consists of three number 5 bars each face running the full width of the panel with number 3 ties spaced at 8 inches on center. Diagonal reinforcement comprises two number 4 bars at 4 feet 8 inches long. Corner conditions utilize number 5 bars with hooks and number 3 ties at 8 inches on center, incorporating a 3-foot lap typical. Vertical reinforcement for the panels is sized per the panel elevations.
