Single-ply roofing is installed over five-eighths-inch exterior roof nesting on a steel deck supported by light gauge metal framing. A two-percent minimum slope directs drainage toward the perimeter edge. The edge is capped with a PVC-clad metal flashing with a water stop, fastened at four inches on center staggered. A twenty-two-gauge continuous metal hook strip secures the fascia, backed by multi-purpose tape, three-coat Portland cement plaster, and two layers of five-eighths-inch exterior sheathing. The interior ceiling incorporates one layer of one-inch Type X gypsum sheathing.

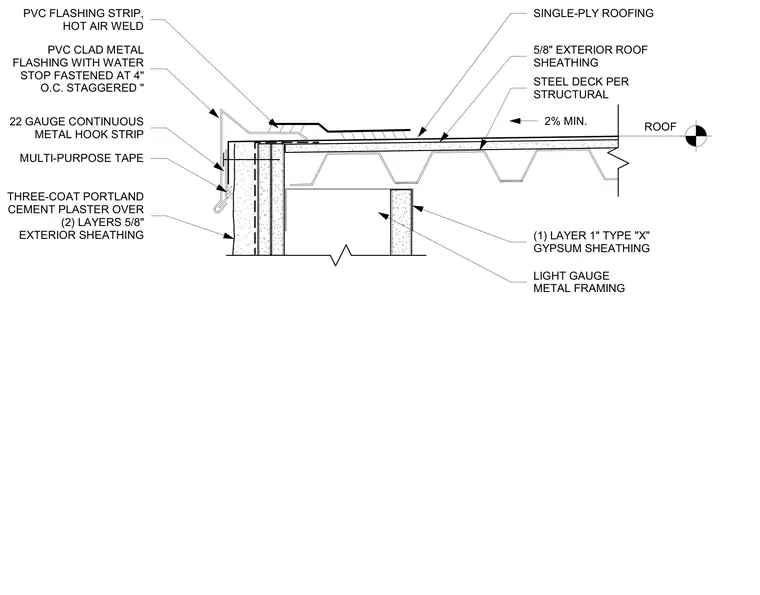

ROOF THREE-COAT PORTLAND CEMENT PLASTER OVER (2) LAYERS 5/8" EXTERIOR SHEATHING SINGLE-PLY ROOFING STEEL DECK PER STRUCTURAL LIGHT GAUGE METAL FRAMING 2% MIN. PVC CLAD METAL FLASHING WITH WATER STOP FASTENED AT 4" O.C. STAGGERED " PVC FLASHING STRIP, HOT AIR WELD (1) LAYER 1" TYPE "X" GYPSUM SHEATHING 22 GAUGE CONTINUOUS METAL HOOK STRIP MULTI-PURPOSE TAPE 5/8" EXTERIOR ROOF SHEATHING
