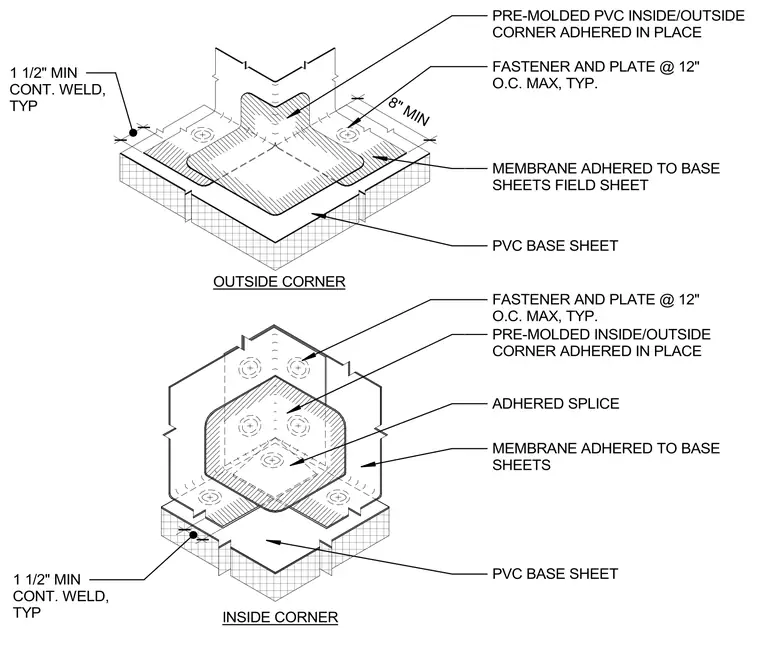

Pre-molded PVC inside and outside corners are adhered in place over a PVC base sheet and field sheet membrane. Mechanical fasteners and plates are spaced at a maximum of 12 inches on center typically. An adhered splice secures the overlapping membrane layers. A one-and-a-half-inch minimum continuous weld is applied typically at the substrate junctions.
8" MIN PRE-MOLDED PVC INSIDE/OUTSIDE CORNER ADHERED IN PLACE MEMBRANE ADHERED TO BASE SHEETS FIELD SHEET PVC BASE SHEET ADHERED SPLICE PRE-MOLDED INSIDE/OUTSIDE CORNER ADHERED IN PLACE PVC BASE SHEET MEMBRANE ADHERED TO BASE SHEETS 1 1/2" MIN CONT. WELD, TYP FASTENER AND PLATE @ 12" O.C. MAX, TYP. FASTENER AND PLATE @ 12" O.C. MAX, TYP. OUTSIDE CORNER INSIDE CORNER 1 1/2" MIN CONT. WELD, TYP
