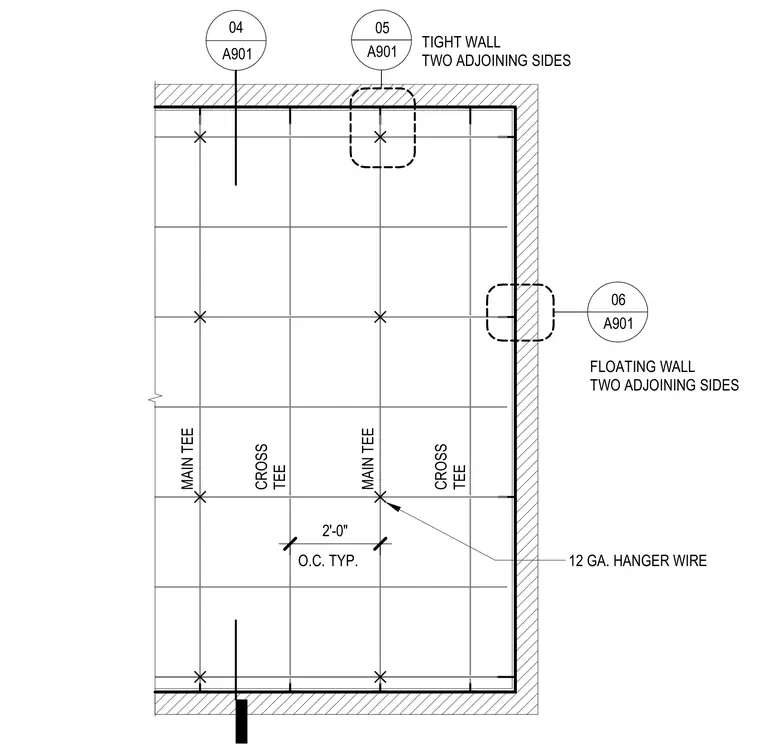

The ceiling grid consists of main tees and cross tees suspended by 12 gauge hanger wires spaced at two feet on center typical. Perimeter conditions differentiate between tight walls on two adjoining sides and floating walls on the remaining two sides. Detail callouts reference larger scale intersections at the perimeter walls.
05 A901 06 A901 04 A901 2'-0" MAIN TEE MAIN TEE CROSS TEE CROSS TEE TIGHT WALL TWO ADJOINING SIDES 12 GA. HANGER WIRE FLOATING WALL TWO ADJOINING SIDES O.C. TYP.
