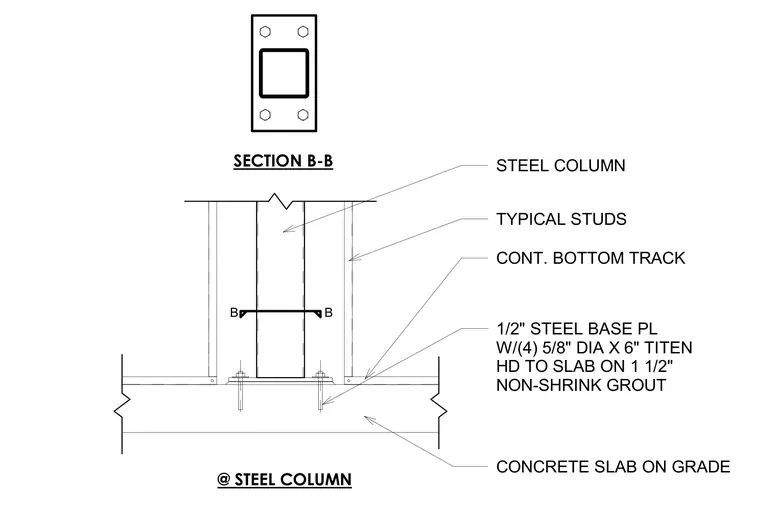

A steel column bears on a one-half-inch steel base plate secured to a concrete slab on grade with four five-eighth-inch diameter by six-inch Titen HD concrete screw anchors over one and one-half inches of non-shrink grout. Continuous bottom tracks and typical studs frame around the steel column base.
STEEL COLUMN TYPICAL STUDS CONT. BOTTOM TRACK 1/2" STEEL BASE PL W/(4) 5/8" DIA X 6" TITEN HD TO SLAB ON 1 1/2" NON-SHRINK GROUT CONCRETE SLAB ON GRADE B B @ STEEL COLUMN SECTION B-B
