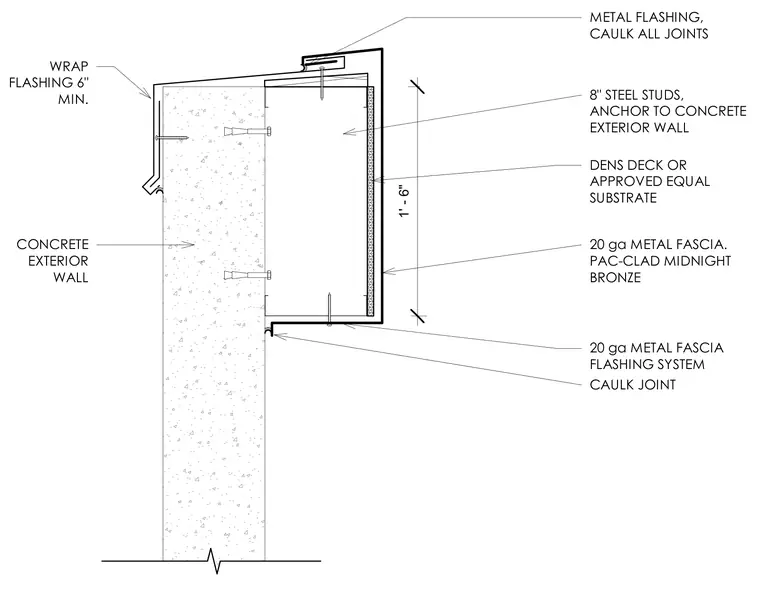

An exterior metal fascia and flashing system is installed atop a concrete exterior wall. Eight-inch steel studs are anchored directly to the concrete wall and sheathed with a Dens Deck or approved equal substrate. The assembly is finished with a twenty-gauge metal fascia in PAC-CLAD Midnight Bronze over a metal flashing system with caulked joints. A separate metal flashing wraps the top of the concrete wall with a minimum six-inch lap.
1' - 6" 8" STEEL STUDS, ANCHOR TO CONCRETE EXTERIOR WALL METAL FLASHING, CAULK ALL JOINTS DENS DECK OR APPROVED EQUAL SUBSTRATE 20 ga METAL FASCIA. PAC-CLAD MIDNIGHT BRONZE 20 ga METAL FASCIA FLASHING SYSTEM CAULK JOINT CONCRETE EXTERIOR WALL WRAP FLASHING 6" MIN.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
