Six-inch cold-formed metal stud framing provides the structural core of the partition wall, with stud spacing coordinated with structural drawings. Sound attenuation batt insulation fills the stud cavity to improve acoustic performance. Five-eighths-inch gypsum wall board faces one side of the framing, while one-half-inch backer board is installed on the opposing side to receive wall finishes per the interior elevation and finish schedule.

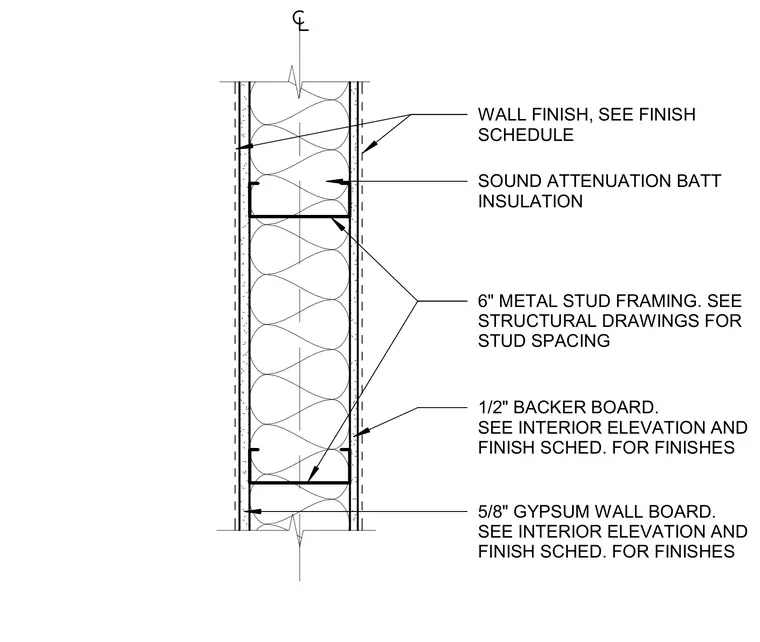

6" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES 1/2" BACKER BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES WALL FINISH, SEE FINISH SCHEDULE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
