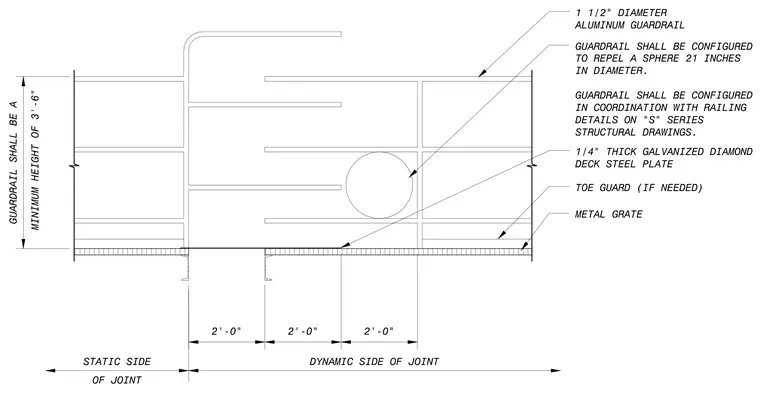

An aluminum guardrail spans across a building expansion joint separating a static side and a dynamic side. The 1 1/2-inch diameter aluminum guardrail is configured to maintain a minimum height of 3 feet 6 inches and is designed to repel a 21-inch diameter sphere. The floor assembly incorporates a 1/4-inch thick galvanized diamond steel plate and a metal grate with an optional toe guard. The joint layout includes specific dimensional clearances across the dynamic and static zones.
2'-0" 2'-0" 2'-0" OF JOINT STATIC SIDE DYNAMIC SIDE OF JOINT MINIMUM HEIGHT OF 3'-6" GUARDRAIL SHALL BE A 1 1/2" DIAMETER ALUMINUM GUARDRAIL GUARDRAIL SHALL BE CONFIGURED TO REPEL A SPHERE 21 INCHES IN DIAMETER. GUARDRAIL SHALL BE CONFIGURED IN COORDINATION WITH RAILING DETAILS ON "S" SERIES STRUCTURAL DRAWINGS. 1/4" THICK GALVANIZED DIAMOND DECK STEEL PLATE METAL GRATE TOE GUARD (IF NEEDED) : ] z I I I T n . ....................... ..............................
