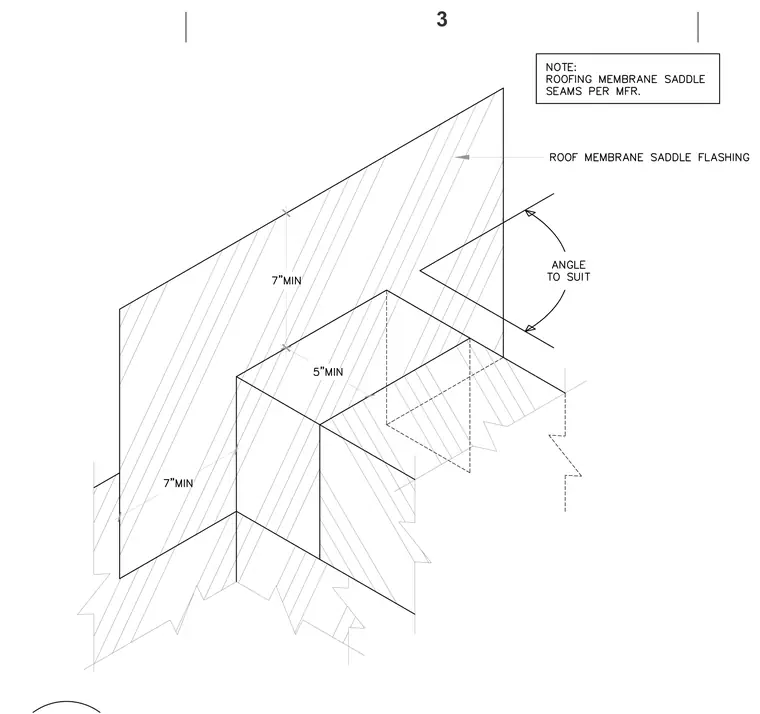

Roof membrane saddle flashing transitions across a flat wall intersection with a minimum seven inch vertical height and minimum five inch width, featuring an angle to suit field conditions. Roofing membrane saddle seams are installed per manufacturer specifications.
