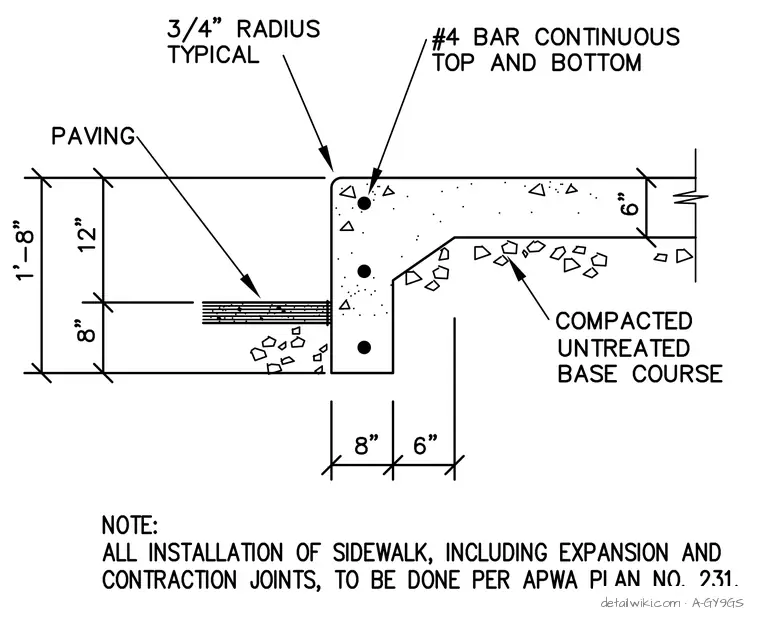

This concrete curb wall features a 12-inch high curb face above an 8-inch deep footing section, totaling 1 foot 8 inches in height. The curb includes a 3/4-inch radius at the top corner and is reinforced with number 4 bars placed continuously at the top and bottom. The adjacent paving terminates against the curb face, which is supported by a compacted untreated base course. The assembly requires all sidewalk installations, including expansion and contraction joints, to comply with American Public Works Association plan number 231.
