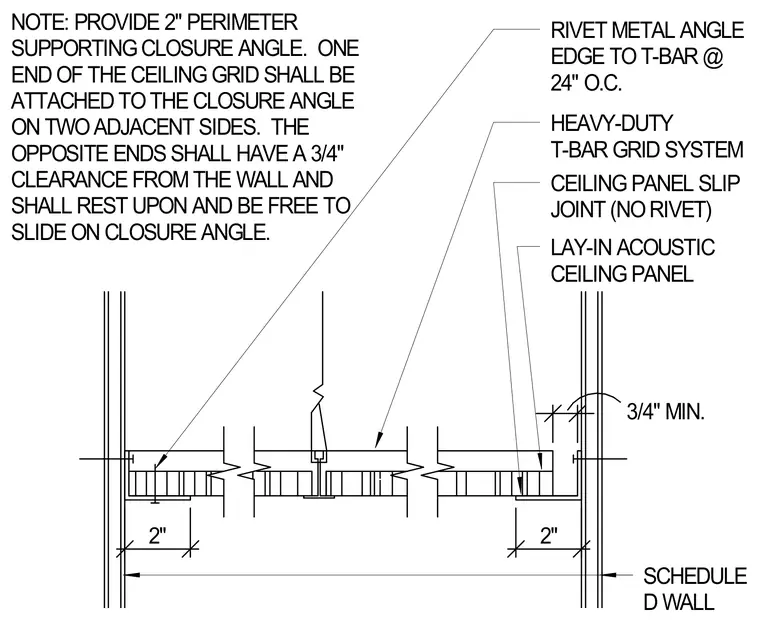

This architectural detail shows a lay-in acoustic ceiling panel supported by a heavy-duty T-bar grid system meeting a Schedule D wall. The metal angle edge is riveted to the T-bar at 24 inches on center. Two adjacent sides are fixed to a two-inch perimeter supporting closure angle. The opposite ends feature a three-quarter-inch minimum clearance from the wall, where the ceiling grid rests upon and is free to slide on the closure angle to accommodate movement.
2" 3/4" MIN. 2" RIVET METAL ANGLE EDGE TO T-BAR @ 24" O.C. CEILING PANEL SLIP JOINT (NO RIVET) HEAVY-DUTY T-BAR GRID SYSTEM SCHEDULE D WALL LAY-IN ACOUSTIC CEILING PANEL NOTE: PROVIDE 2" PERIMETER SUPPORTING CLOSURE ANGLE. ONE END OF THE CEILING GRID SHALL BE ATTACHED TO THE CLOSURE ANGLE ON TWO ADJACENT SIDES. THE OPPOSITE ENDS SHALL HAVE A 3/4" CLEARANCE FROM THE WALL AND SHALL REST UPON AND BE FREE TO SLIDE ON CLOSURE ANGLE.
