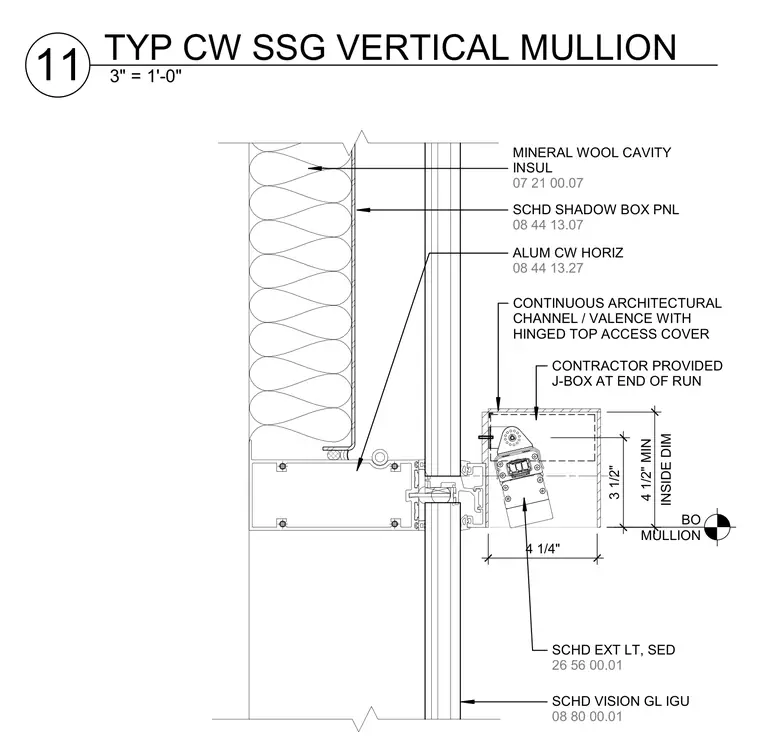

An aluminum curtain wall horizontal member supports vision insulating glass units below and scheduled shadow box panels backed by mineral wool cavity insulation above. A continuous architectural channel and valence featuring a hinged top access cover integrates into the interior side of the framing. Inside this channel, a scheduled exterior light fixture connects to a contractor-provided junction box located at the end of the run. The assembly maintains a minimum inside dimension of 4 1/2 inches with a 3 1/2-inch vertical clearance and 4 1/4-inch horizontal dimension for the lighting fixture compartment.
BO MULLION 07 21 00.07 MINERAL WOOL CAVITY INSUL 08 44 13.07 SCHD SHADOW BOX PNL 08 44 13.27 ALUM CW HORIZ 08 80 00.01 SCHD VISION GL IGU 26 56 00.01 SCHD EXT LT, SED CONTINUOUS ARCHITECTURAL CHANNEL / VALENCE WITH HINGED TOP ACCESS COVER CONTRACTOR PROVIDED J-BOX AT END OF RUN 4 1/4" INSIDE DIM 4 1/2" MIN 3 1/2" 3" = 1'-0" 11 TYP CW SSG VERTICAL MULLION
