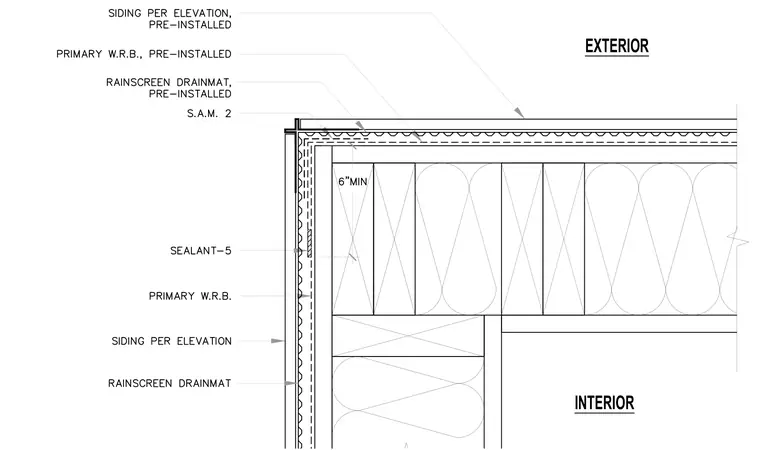

An exterior wall plan detail shows a tilt-up outside corner configuration with pre-installed siding per elevation over a rainscreen drainmat and primary water-resistive barrier. A self-adhered membrane 2 wraps the corner with a six-inch minimum lap. Joint sealant five is applied within the exterior vertical joint. The interior side details framing members and insulation layers.
