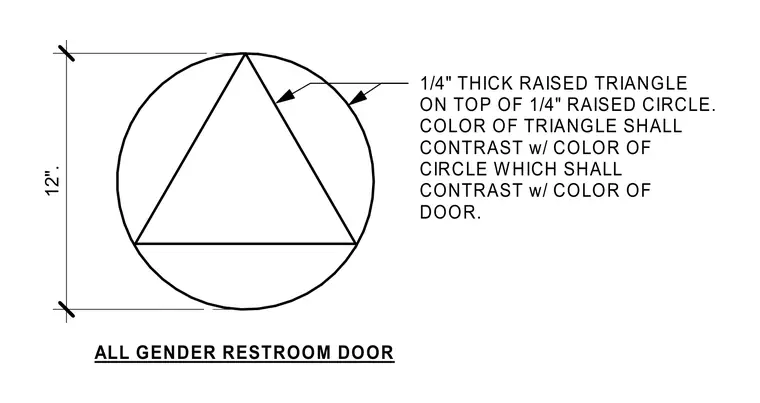

A twelve-inch diameter raised circle is mounted to the restroom door face, with a one-quarter-inch thick raised triangle positioned on top of the circle. The triangle and circle have contrasting colors, and the circle contrasts with the color of the door to comply with accessibility requirements.
ALL GENDER RESTROOM DOOR 12". 1/4" THICK RAISED TRIANGLE ON TOP OF 1/4" RAISED CIRCLE. COLOR OF TRIANGLE SHALL CONTRAST w/ COLOR OF CIRCLE WHICH SHALL CONTRAST w/ COLOR OF DOOR.
