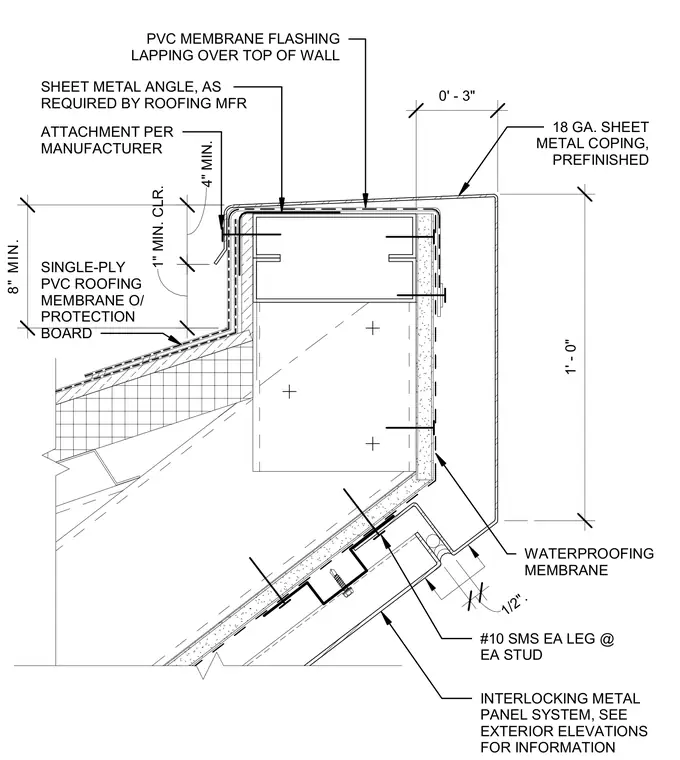

An eighteen gauge prefinished sheet metal coping caps the parapet wall assembly. A poly-vinyl chloride membrane flashing laps over the top of the wall above the waterproofing membrane. A sheet metal angle required by the roofing manufacturer is fastened with number ten sheet metal screws at each leg at each stud. Single-ply poly-vinyl chloride roofing membrane over protection board connects to the roof assembly. An interlocking metal panel system clads the exterior face of the wall.
PVC MEMBRANE FLASHING LAPPING OVER TOP OF WALL WATERPROOFING MEMBRANE 18 GA. SHEET METAL COPING, PREFINISHED SHEET METAL ANGLE, AS REQUIRED BY ROOFING MFR SINGLE-PLY PVC ROOFING MEMBRANE O/ PROTECTION BOARD ATTACHMENT PER MANUFACTURER INTERLOCKING METAL PANEL SYSTEM, SEE EXTERIOR ELEVATIONS FOR INFORMATION 0' - 3" 1/2". 1' - 0" 1" MIN. CLR. 4" MIN. #10 SMS EA LEG @ EA STUD PVC MEMBRANE FLASHING LAPPING OVER TOP OF WALL WATERPROOFING MEMBRANE 18 GA. SHEET METAL COPING, PREFINISHED SHEET METAL ANGLE, AS REQUIRED BY ROOFING MFR SINGLE-PLY PVC ROOFING MEMBRANE O/ PROTECTION BOARD ATTACHMENT PER MANUFACTURER INTERLOCKING METAL PANEL SYSTEM, SEE EXTERIOR ELEVATIONS FOR INFORMATION 0' - 3" 1/2". 1' - 0" 1" MIN. CLR. 4" MIN. #10 SMS EA LEG @ EA STUD 8" MIN.
