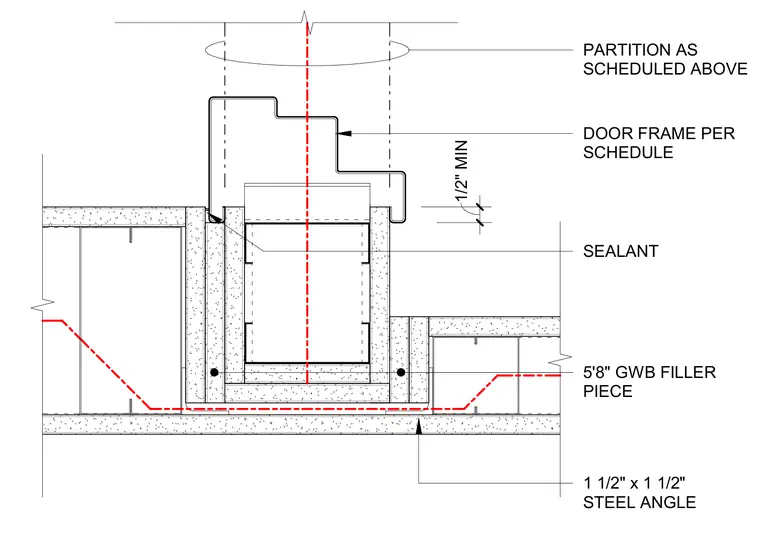

A 1 1/2" x 1 1/2" steel angle door frame per schedule is set within a rated partition assembly as scheduled above. The wall incorporates a 5/8" gypsum wallboard filler piece and maintains a minimum 1/2" partition clearance. Sealant is applied at the frame junction to complete the rated perimeter condition.
1 1/2" x 1 1/2" STEEL ANGLE DOOR FRAME PER SCHEDULE 1/2" MIN PARTITION AS SCHEDULED ABOVE 5'8" GWB FILLER PIECE SEALANT
