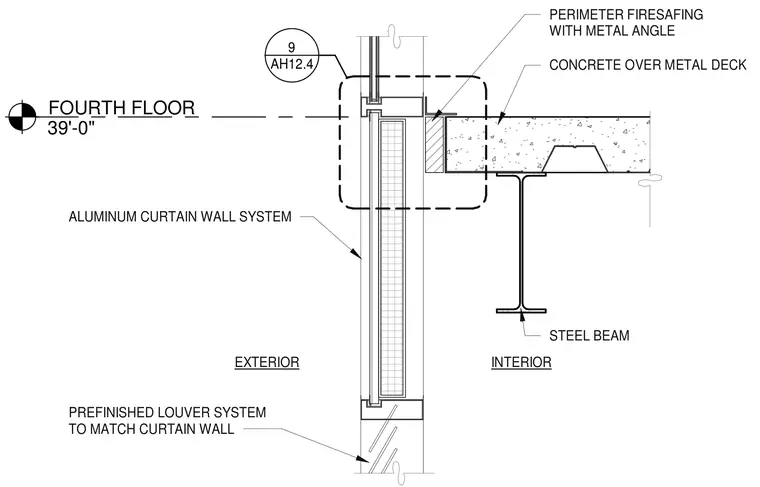

An aluminum curtain wall system and a prefinished louver system align vertically at the exterior building face adjacent to a fourth floor slab edge at elevation thirty-nine feet zero inches. The concrete over metal deck floor is supported by a structural steel beam. A perimeter firesafing material backed by a metal angle seals the slab edge gap against the exterior wall assembly.
FOURTH FLOOR 39'-0" EXTERIOR INTERIOR AH12.4 9 CONCRETE OVER METAL DECK PERIMETER FIRESAFING WITH METAL ANGLE ALUMINUM CURTAIN WALL SYSTEM STEEL BEAM PREFINISHED LOUVER SYSTEM TO MATCH CURTAIN WALL
