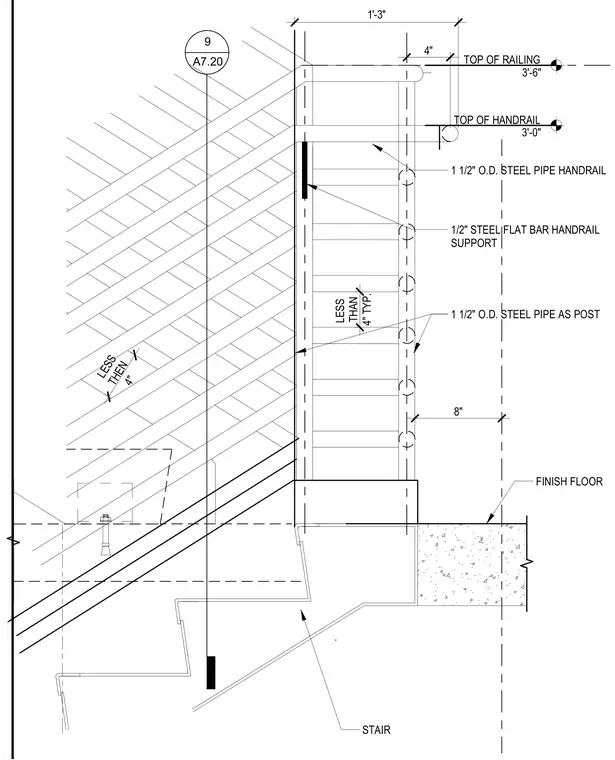

A steel pipe guardrail and handrail assembly at a main stair landing. A one-and-a-half-inch outside diameter steel pipe functions as the top railing at three feet six inches above the finish floor, while a separate one-and-a-half-inch outside diameter steel pipe serves as the handrail at three feet zero inches. The handrail attaches to the posts using a half-inch steel flat bar support. One-and-a-half-inch outside diameter steel pipes also serve as vertical posts, spaced to maintain openings less than four inches typical. The stair connects adjacent floor levels with a clear landing depth of one foot three inches.
TOP OF HANDRAIL 3'-0" TOP OF RAILING 3'-6" 1 1/2" O.D. STEEL PIPE HANDRAIL 1/2" STEEL FLAT BAR HANDRAIL SUPPORT 1 1/2" O.D. STEEL PIPE AS POST STAIR 9 A7.20 4" 4" TYP. LESS THAN 4" LESS THEN FINISH FLOOR 1'-3" 8"
