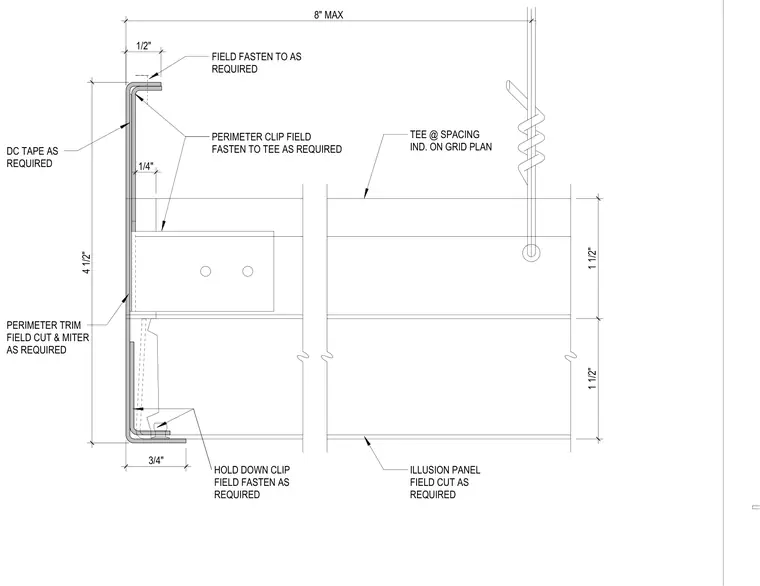

An illusion panel is supported by a suspension tee spaced per the grid plan and secured with a hold-down clip field-fastened as required. A perimeter trim profile is field-cut and mitered as required, featuring DC tape applied along the vertical face. A perimeter clip fastens the trim assembly to the tee. Dimensions indicate a 4 1/2-inch vertical trim leg with a 1/4-inch offset and 3/4-inch bottom return.
PERIMETER CLIP FIELD FASTEN TO TEE AS REQUIRED 1/2" 1/4" 8" MAX 4 1/2" 3/4" 1 1/2" 1 1/2" FIELD FASTEN TO AS REQUIRED TEE @ SPACING IND. ON GRID PLAN ILLUSION PANEL FIELD CUT AS REQUIRED HOLD DOWN CLIP FIELD FASTEN AS REQUIRED PERIMETER TRIM FIELD CUT & MITER AS REQUIRED DC TAPE AS REQUIRED
