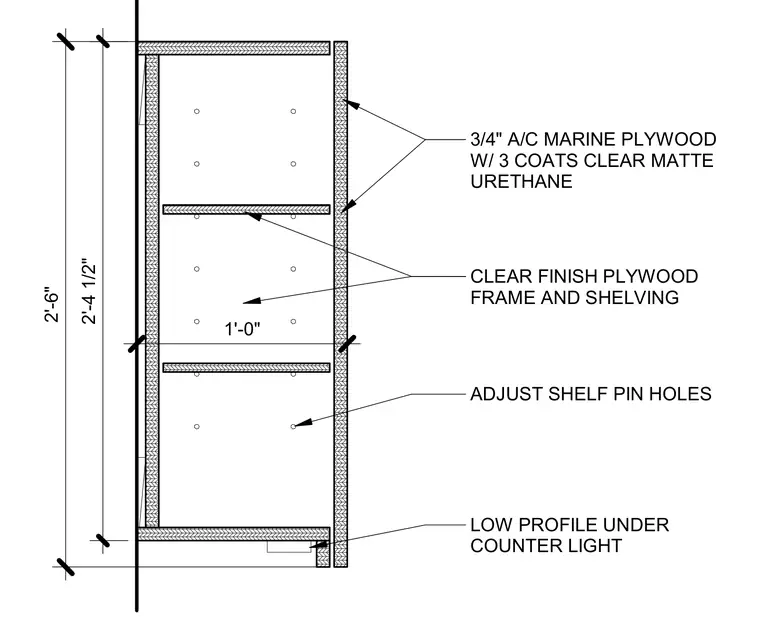

This interior millwork detail shows an upper cabinet constructed from three-quarter-inch A/C marine plywood with three coats of clear matte urethane finish. The frame and shelving utilize clear finish plywood supported by adjustable shelf pin holes drilled into the cabinet sides. A low profile under-counter light is mounted beneath the bottom shelf assembly. The overall cabinet height measures two feet six inches with a depth of one foot zero inches.
1'-0" 3/4" A/C MARINE PLYWOOD W/ 3 COATS CLEAR MATTE URETHANE CLEAR FINISH PLYWOOD FRAME AND SHELVING LOW PROFILE UNDER COUNTER LIGHT ADJUST SHELF PIN HOLES 2'-4 1/2" 2'-6"
