Base Cabinet Section with Solid Surface Countertop

Materials

Elements

Walls Doors Floors / Slabs Millwork / Casework

About this detail

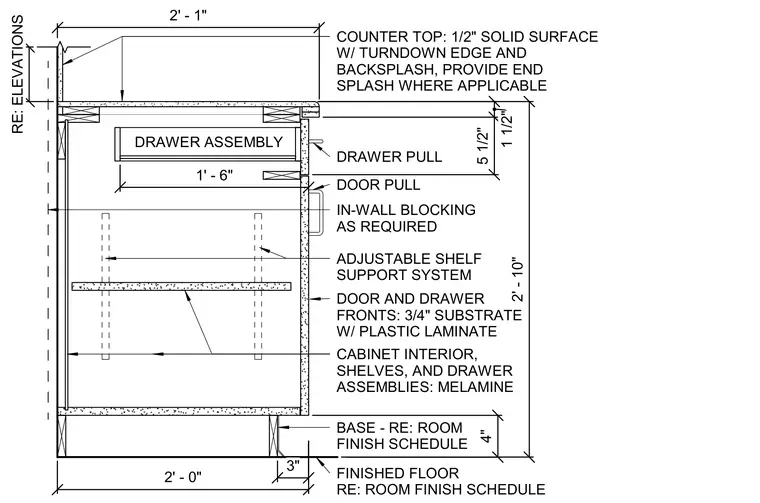

The base cabinet stands on a finished floor with a base member sized per the room finish schedule and a total cabinet height of two feet ten inches. The countertop consists of a one-half-inch solid surface material featuring a turndown edge, a backsplash, and an end splash where applicable. Door and drawer fronts are fabricated from three-quarter-inch substrate finished with plastic laminate, complemented by mounted pulls and in-wall blocking as required. Cabinet interiors, shelves, and drawer assemblies utilize melamine with an adjustable shelf support system inside a two-foot-one-inch deep configuration.
