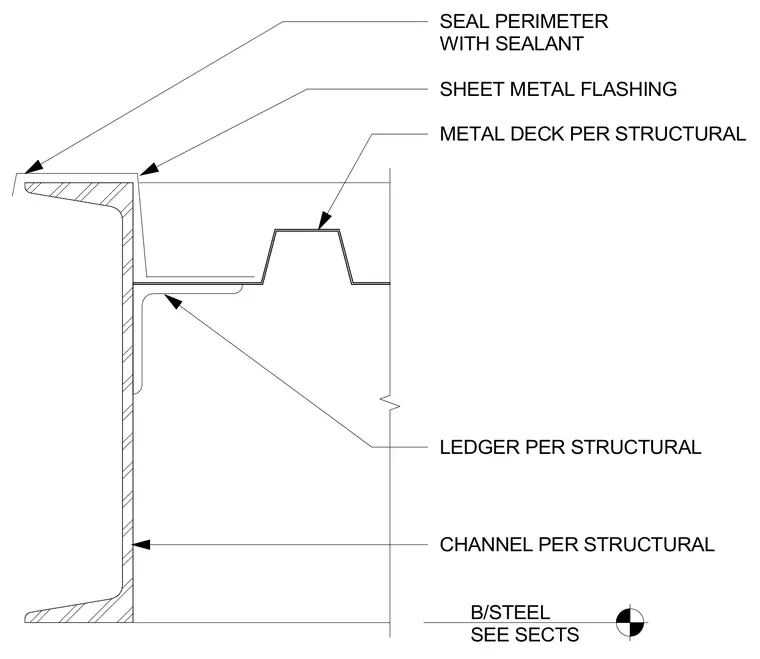

A metal deck bears directly on a structural ledger attached to a structural channel. Sheet metal flashing protects the perimeter transition. The entire edge is sealed with perimeter sealant per the specifications.
SEAL PERIMETER WITH SEALANT SHEET METAL FLASHING METAL DECK PER STRUCTURAL LEDGER PER STRUCTURAL CHANNEL PER STRUCTURAL B/STEEL SEE SECTS
