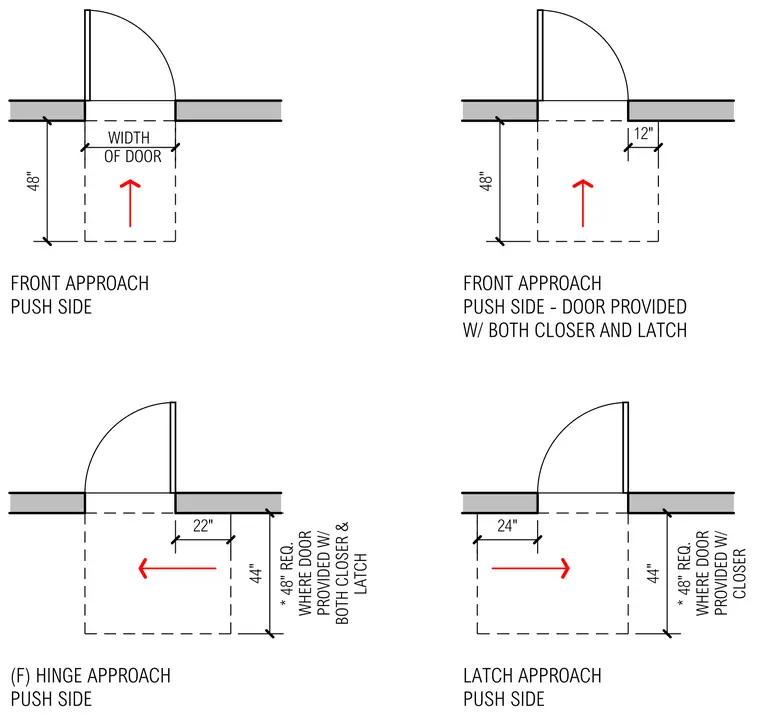

This diagram details ADA accessibility clearance dimensions for the push side of doors under various approach conditions. Front approach configurations require a forty-eight-inch depth matching the door width, with a twelve-inch clearance required when the door has both a closer and a latch. Hinge approach configurations require a forty-four-inch depth and twenty-two-inch latch clearance, increasing to forty-eight inches when equipped with both a closer and latch. Latch approach configurations require a forty-four-inch depth and twenty-four-inch latch clearance, increasing to forty-eight inches when equipped with a closer.
24" 44" * 48" REQ. WHERE DOOR PROVIDED W/ CLOSER 22" 44" * 48" REQ. WHERE DOOR PROVIDED W/ BOTH CLOSER & LATCH 12" WIDTH OF DOOR 48" 48" FRONT APPROACH PUSH SIDE FRONT APPROACH PUSH SIDE - DOOR PROVIDED W/ BOTH CLOSER AND LATCH (F) HINGE APPROACH PUSH SIDE LATCH APPROACH PUSH SIDE
