Architectural · A-GVAEX

Parapet @ Exterior Stud Wall

Materials

Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Facades / Cladding Roofs Parapets Decks Waterproofing / Flashing Insulation Anchors / Embeds

Connections

Deck Attachment

About this detail

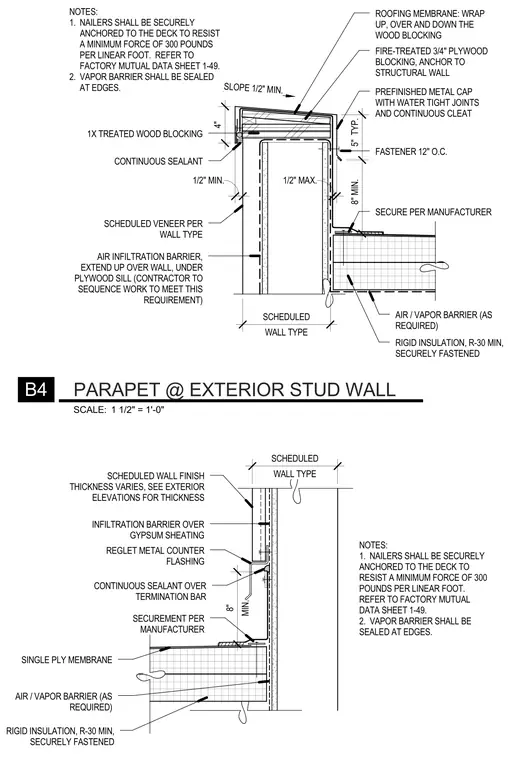

This parapet detail shows the intersection of the roof assembly with an exterior stud wall, incorporating a prefinished metal cap with watertight joints and continuous cleat over fire-treated three-quarter-inch plywood blocking. The roofing membrane wraps up, over, and down the wood blocking, terminating above a continuous sealant line and one-inch treated wood blocking. An air and vapor barrier extends up the structural wall beneath the framing, coordinating with a minimum R-30 rigid insulation layer and a scheduled exterior veneer finish. Nailers are securely anchored to resist a minimum force of three hundred pounds per linear foot in accordance with Factory Mutual Data Sheet 1-49.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
