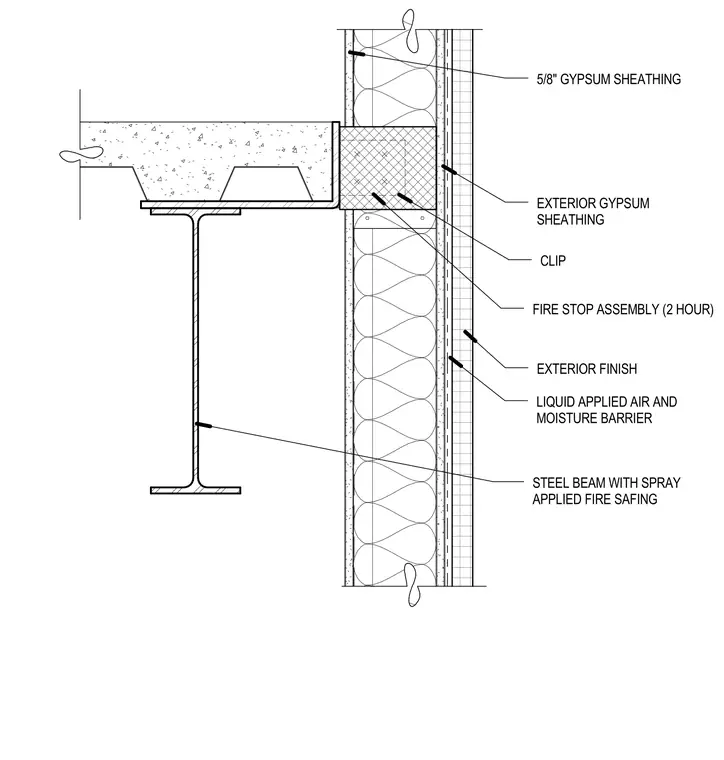

A concrete floor slab on metal deck bears on a steel beam protected with spray-applied fire safing. The exterior edge integrates a two-hour fire stop assembly supported by a clip anchored to the slab edge. A liquid-applied air and moisture barrier covers the exterior gypsum sheathing behind the exterior finish. Five-eighths-inch gypsum sheathing lines the interior side of the exterior wall assembly.
FIRE STOP ASSEMBLY (2 HOUR) STEEL BEAM WITH SPRAY APPLIED FIRE SAFING CLIP LIQUID APPLIED AIR AND MOISTURE BARRIER EXTERIOR GYPSUM SHEATHING EXTERIOR FINISH 5/8" GYPSUM SHEATHING
