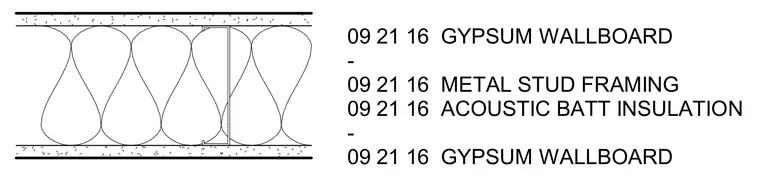

This interior partition assembly consists of cold-formed metal stud framing finished with gypsum wallboard on both faces. Acoustic batt insulation fills the stud cavity to improve sound attenuation between spaces.
09 21 16 GYPSUM WALLBOARD - 09 21 16 METAL STUD FRAMING 09 21 16 ACOUSTIC BATT INSULATION - 09 21 16 GYPSUM WALLBOARD
