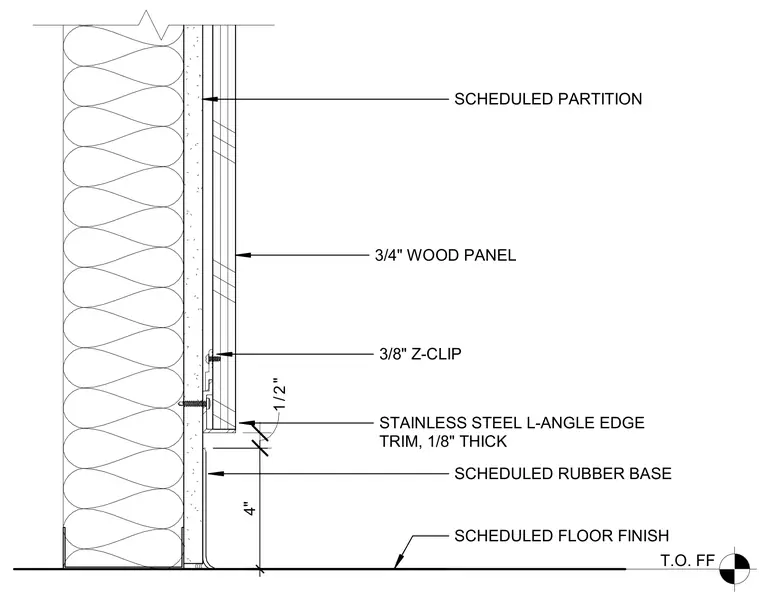

An interior wood panel wall base assembly terminates above a scheduled floor finish with a four-inch scheduled rubber base. A three-quarter-inch wood panel is secured to a scheduled partition using a three-eighths-inch Z-clip. A one-eighth-inch-thick stainless steel L-angle edge trim finishes the bottom edge of the wood panel with a one-half-inch reveal above the base.
SCHEDULED FLOOR FINISH SCHEDULED PARTITION SCHEDULED RUBBER BASE T.O. FF 4" 3/8" Z-CLIP STAINLESS STEEL L-ANGLE EDGE TRIM, 1/8" THICK 3/4" WOOD PANEL 1/2 "
