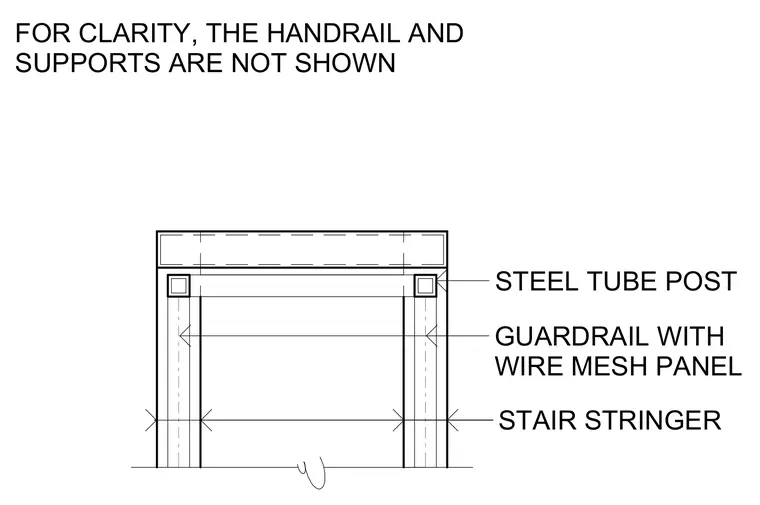

A steel tube post guardrail with a wire mesh infill panel is mounted directly to the stair stringer. The handrail and structural supports are omitted for clarity. The assembly features vertical steel tube posts framing the wire mesh panel above the stair stringer.
FOR CLARITY, THE HANDRAIL AND SUPPORTS ARE NOT SHOWN STEEL TUBE POST GUARDRAIL WITH WIRE MESH PANEL STAIR STRINGER
