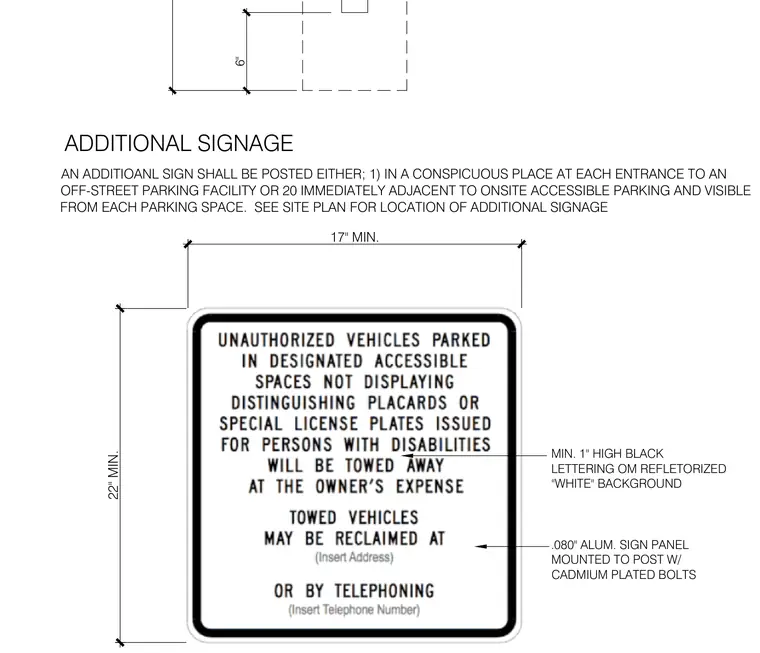

An additional sign shall be posted in a conspicuous place at each entrance to an off-street parking facility or immediately adjacent to onsite accessible parking and visible from each parking space. The sign consists of a zero-point-eighty-inch aluminum sign panel mounted to a post with cadmium-plated bolts, featuring minimum one-inch high black lettering on a reflectorized white background. Minimum dimensions include seventeen inches in width and twenty-two inches in height.
6" 17" MIN. 22" MIN. AN ADDITIOANL SIGN SHALL BE POSTED EITHER; 1) IN A CONSPICUOUS PLACE AT EACH ENTRANCE TO AN OFF-STREET PARKING FACILITY OR 20 IMMEDIATELY ADJACENT TO ONSITE ACCESSIBLE PARKING AND VISIBLE FROM EACH PARKING SPACE. SEE SITE PLAN FOR LOCATION OF ADDITIONAL SIGNAGE ADDITIONAL SIGNAGE .080" ALUM. SIGN PANEL MOUNTED TO POST W/ CADMIUM PLATED BOLTS MIN. 1" HIGH BLACK LETTERING OM REFLETORIZED "WHITE" BACKGROUND
