Architectural · A-GTJM8

Ventwood Wood Ceiling Junction at Metal Stud Header

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

About this detail

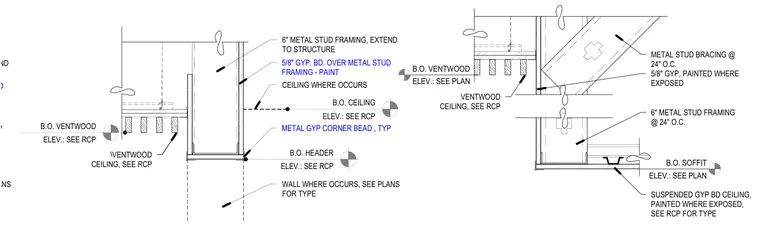

Junction between a Ventwood linear wood ceiling system and a framed ceiling header. The assembly utilizes 6-inch cold-formed metal stud framing extending to structure, finished with 5/8-inch gypsum board and metal gypsum corner beads where exposed. Diagonal metal stud framing members at 24 inches on center provide structural bracing for the header condition. Elevations for the bottom of the header, Ventwood ceiling, and suspended gypsum board ceiling are referenced to the reflected ceiling plan.
