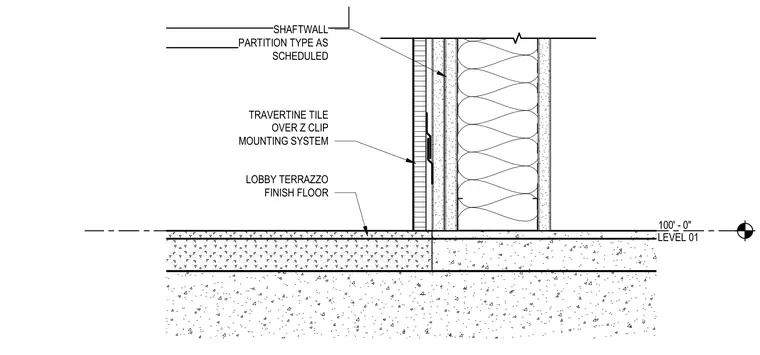

Travertine tile wall finish is mechanically mounted over a Z-clip mounting system attached to a shaftwall partition type as scheduled. The assembly meets the Level 01 lobby terrazzo finish floor at the 100'-0" elevation.
100' - 0" LEVEL 01 LOBBY TERRAZZO FINISH FLOOR TRAVERTINE TILE OVER Z CLIP MOUNTING SYSTEM SHAFTWALL PARTITION TYPE AS SCHEDULED
