Architectural · A-GT7YT

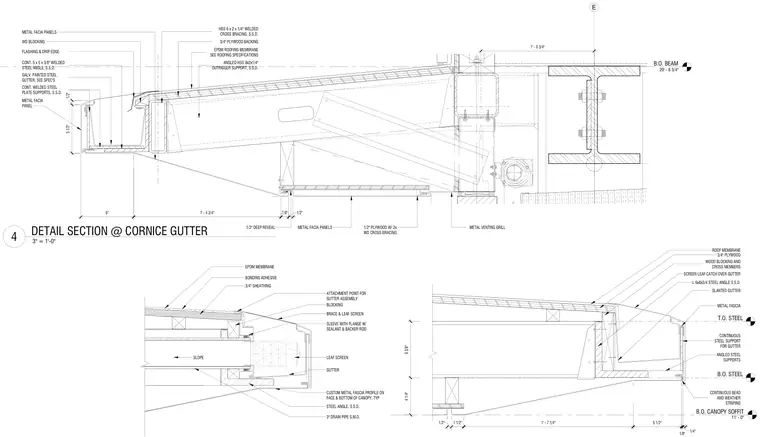

Detail Section at Cornice Gutter

Materials

Steel Timber / Wood Metal (misc.)Membrane / Roofing

Elements

Beams Roofs Canopies Ceilings Bracing Waterproofing / Flashing Drainage Connections / Plates Roof / Floor Openings

Connections

HSS Connection Bracing Connection Welded Connection

About this detail

A steel-framed canopy cornice and gutter assembly ties back to a primary structural steel beam. The structural framework consists of hollow structural section outriggers and cross bracing supported by continuous welded steel angles and plates. The roof assembly is built up with three-quarter-inch plywood backing, bonding adhesive, and an EPDM roofing membrane. At the perimeter, a custom metal fascia profile conceals a galvanized painted steel gutter equipped with a leaf screen and a three-inch drain pipe with a sleeve, flange, sealant, and backer rod. The underside of the canopy features metal fascia panels, wood blocking with cross bracing, and a metal venting grill.
